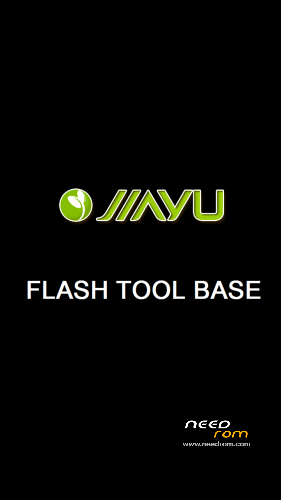

Base for Flash tool Jiayu G4S

Author adMember Info

batsilos


DESCRIPTION


Here I present you my Flash tool rom base for Jiayu G4s.

Not for beginners , follow the steps preciselly please!

It makes system partition bigger (data smaller) to prepare for larger roms to be installed via TWRP.

It includes insecured boot and my twrp recovery already. Also is restores nvram.

Instructions.

Download zip and unpack , in a directory (Preferably c:/G4S).

Copy inside this directory your nvram bin backup from MTKdroid tools, renamed nvram.bin. (You have one right?)

Open Flash tools and load scatter.txt from G4S folder.

Now choose Format menu on top , make sure Format whole flash except bootloader is chosen and press start button.

Remove battery from phone , keep it removed and connect usb cable with pc and mobile. If you have drivers installed , the format proccess will start. If not install MTK Vcom drivers to the device that pops up in device manager of pc.

When it is finished , remove usb.

No go back to Download menu and make sure all fields are filled with files in location column.

Choose Download only and press the Download button. Reconnect pc-mobile , still without battery.

When it is finished remove USB and connect battery.

Now press the vol+ button , connect usb and while still pressing vol+ briefly press the power button.

Keep vol+ pressed , you will see Jiayu logo. When you see recovery logo release vol+. Now you are in TWRP..

Now do these step in wipe menu , exaclty in this order. (PS by this time you don't have and system cache and data partition, they must be formatted)

Goto wipe menu. Press advanced wipe , and wipe in this order.

First system –swipe wipe. Then cache –swipe wipe and finally Data –swipe wipe.

Reboot phone in recovery again. The phone will complain you have no OS installed when you choose to reboot so ignore that and choose yes , reboot.. Check that you can mount all partitions after you re-enter TWRP.

If you can't repeat the wipes again in same order.

Finally flash from twrp your favorite rom.


Donate with PayPal to batsilos

Share Button

※Please make a backup of your device before installing or updating ROM


27 Responses to“Base for Flash tool Jiayu G4S”







  1. 11/21/2014
    Posts: 18

    y todo esto para que sirve realmente y que mejoras ofrecen?

  2. batsilos




    03/29/2014
    Posts: 1183

    El aumento de tamaño de la partición del sistema, boot.img desbloqueado y TWRP recuperación, restauración nvram.
    Con esto, usted serácapaz de parpadear mis próximos roms + Lollipop en algún momento



  3. batsilos




    03/29/2014
    Posts: 1183

    adb es también siempre la SU





  4. 01/12/2014
    Posts: 28

    1) What's the difference between this base and the one found in your Zopo upload? (other than the initial formatting step)

    2) Also, if some1 is coming from JB, which nvram.bin should they use?





    • 01/12/2014
      Posts: 28

      ok never mind…this aint for V3, my bad! But the general idea should also apply to V3. Hence, the second question is still valid :-)

  5. batsilos




    03/29/2014
    Posts: 1183

    You must use the KK nvram, made by factory specific. (hence the APDB_MT6592_S01_KK1.MP1_ and BPLGUInfoCustomAppSrcP_MT6592_S00_MOLY_WR8_W1315_MD_WG_MP_V34_1_wg_n files)

    If you dont have it , borrow from someone who does , and chnge imei. Basically you can also build it with maui meta and the device specific ini.





  6. 11/21/2014
    Posts: 18

    Y no va a afectar a las otras roms que no sea tuyas?

  7. batsilos




    03/29/2014
    Posts: 1183

    Se trabajarápara cada rom





  8. 11/21/2014
    Posts: 18

    terminado, ha salido todo bien muchas gracias

    y crees que va a ver desarrollo de lollipop en nuestro movil como en los bq que tienen el mismo procesador??

  9. batsilos




    03/29/2014
    Posts: 1183

    Sin kernel y lk.bin, muy difícil!





  10. 08/30/2014
    Posts: 2

    Hi, this update works on G5S 2/16?
