  • Title: Firefly Mobile S90 Q
  • Listed: 03/28/2016 5:24 pm
  • ROM Version:ROM Android 5.1
  • You must be logged for ROM download.



Overall Rating : 4

4473 total views, 4 today

14 Total favorites

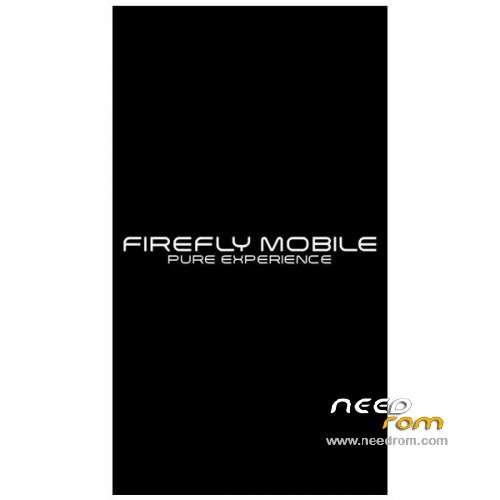

Firefly Mobile S90 Q

Author adMember Info

SoCr@Te

  • Listed by: SoCr@Te
  • Member Since: 05/15/0470

DESCRIPTION


ROM Mobile FIREFLY MOBILE S90 Q –ROM Android 5.1

ONLY MT6580

Official ROM FIREFLY MOBILE S90 Q Version: FIREFLY_S90Q_V12_DR3_20160324- 1489D_K510_B.151106.ALPS.L1.MP6.V2_BIRD6580.WEG.A.L.ME44.P0 –DDR3

————————————————————————————————————————————————————————–

Update Official ROM FIREFLY MOBILE S90 Q Version: FIREFLY_S90Q_V05_20151106 –1489D_K510_B.151106.ALPS.L1.MP6.V2_BIRD6580.WEG.A.L.ME44.P0

————————————————————————————————————————————————————————–

Update Official ROM FIREFLY MOBILE S90 Q Version: FIREFLY_S90Q_V03_20151027 –1489D_K510_B.151027.ALPS.L1.MP6.V2_BIRD6580.WEG.A.L.ME44.P0

————————————————————————————————————————————————————————–

Update Official ROM FIREFLY MOBILE S90 Q Version: FIREFLY_S90Q_V02_20151016 –1489D_K510_B.151016.ALPS.L1.MP6.V2_BIRD6580.WEG.A.L.ME44.P0

————————————————————————————————————————————————————————–

Official ROM FIREFLY MOBILE S90 Q Version: FIREFLY_S90Q_V01_20151008 –1489D_K510_A_1.151008.ALPS.L1.MP6.V2_BIRD6580.WEG.A.L.ME88.P1

full_bird6580_weg_a_l-user 5.1 LMY47I

Gapps include –No Rooted

Language support: en_US,zh_CN,zh_TW,es_ES,pt_BR,ru_RU,fr_FR,de_DE,tr_TR,vi_VN,ms_MY,in_ID,th_TH,it_IT,ar_EG,hi_IN,bn_IN,ur_PK,

fa_IR,pt_PT,nl_NL,el_GR,hu_HU,tl_PH,ro_RO,cs_CZ,ko_KR,km_KH,iw_IL,my_MM,pl_PL,es_US,bg_BG,hr_HR,lv_LV

,lt_LT,sk_SK,uk_UA,de_AT,da_DK,fi_FI,nb_NO,sv_SE,en_GB,hy_AM,zh_HK,et_EE,ja_JP,kk_KZ,sr_RS,sl_SI,ca_ES


Install ROM:

- Unpack FlashTools, and Click on Flash_tool.exe
- Select "scatter-Loading"and search MT6580_Android_scatter.txt in ROM
- Wait file to be added into Flash Tool
- Select "Download Only"or if upgrade "Firmware upgrade"
- Turn off your phone, remove the battery (if the battery is removable) and replace it after some seconds (and don't turn on the phone).

- Press “Download”button to start
- and connect your phone into the computer via USB data cable.
- The process will start and a red progress bar will appear after color purple, yellow.
- And green circles display
- Finish !

- You can now safely disconnect your phone and turn it on.


Share Button

※Please make a backup of your device before installing or updating ROM


33 Responses to“Firefly Mobile S90 Q”







  1. 11/17/2015
    Posts: 1

    thanx.. great upload.. but is there a way to root this Firefly S90 Q? i've tried so many rooting apps out there…nothing worked.. thanx in advance





    • 04/15/2016
      Posts: 1

      theres have. download kingroot chineese version den root ur phone via pc.





    • 03/20/2014
      Posts: 6

      kingroot is the only possible solution. download the apk version, not the windows/mac application, and run it on your phone.

      to replace kingroot with SuperSU, you need to run SuperSUME after rooting the phone.





    • 07/26/2016
      Posts: 4

      kingo root is the best rooting app for s90Q







  2. 01/08/2016
    Posts: 3

    Bat po ganun yung sakin? Ang lumalabas po "The load scatter is invalid". Bat po ganun? Ang dinownload ko po kasi ay yung V1. Pwede niyo po ba i-upload yung scatter file? Kahit yun lang po

  3. blindeye




    09/21/2014
    Posts: 8

    my phone is firefly s90 q,thanks this firmware





  4. 06/28/2015
    Posts: 1

    Invalid Scatter file!.. please upload the right scatter file thanks!;D





  5. 02/05/2016
    Posts: 1

    anung version yung di error





  6. 02/26/2016
    Posts: 2

    i cant connect my device ! my device is in bootloop







  7. 12/14/2015
    Posts: 1

    mga sir pwd po ba to sa firefly mobile S90?…. salamat sa pagsagot.

  8. blindeye




    09/21/2014
    Posts: 8

    nice sharing…





  9. 04/06/2016
    Posts: 1

    open in text editor scatter file . . ito yun pag ma open nyu .

    BIRDTOOLMINVER[4.0]
    ############################################################################################################
    #
    # General Setting
    #
    ############################################################################################################
    - general: MTK_PLATFORM_CFG
     info:
       –config_version: V1.1.2
         platform: MT6580
         project: bird6580_weg_a_l
         storage: EMMC
         boot_channel: MSDC_0
         block_size: 0×20000
    ############################################################################################################
    #
    # Layout Setting
    #
    ############################################################################################################
    - partition_index: SYS0
     partition_name: preloader
     file_name: preloader.bin
     is_download: true
     type: SV5_BL_BIN
     linear_start_addr: 0×0
     physical_start_addr: 0×0
     partition_size: 0×40000
     region: EMMC_BOOT_1
     storage: HW_STORAGE_EMMC
     boundary_check: true
     is_reserved: false
     operation_type: BOOTLOADERS
     reserve: 0×00

    - partition_index: SYS1
     partition_name: pgpt
     file_name: NONE
     is_download: false
     type: NORMAL_ROM
     linear_start_addr: 0×0
     physical_start_addr: 0×0
     partition_size: 0×80000
     region: EMMC_USER
     storage: HW_STORAGE_EMMC
     boundary_check: true
     is_reserved: false
     operation_type: INVISIBLE
     reserve: 0×00

    - partition_index: SYS2
     partition_name: proinfo
     file_name: NONE
     is_download: false
     type: NORMAL_ROM
     linear_start_addr: 0×80000
     physical_start_addr: 0×80000
     partition_size: 0×300000
     region: EMMC_USER
     storage: HW_STORAGE_EMMC
     boundary_check: true
     is_reserved: false
     operation_type: PROTECTED
     reserve: 0×00

    - partition_index: SYS3
     partition_name: nvram
     file_name: NONE
     is_download: false
     type: NORMAL_ROM
     linear_start_addr: 0×380000
     physical_start_addr: 0×380000
     partition_size: 0×500000
     region: EMMC_USER
     storage: HW_STORAGE_EMMC
     boundary_check: true
     is_reserved: false
     operation_type: BINREGION
     reserve: 0×00

    - partition_index: SYS4
     partition_name: protect1
     file_name: NONE
     is_download: false
     type: EXT4_IMG
     linear_start_addr: 0×880000
     physical_start_addr: 0×880000
     partition_size: 0xa00000
     region: EMMC_USER
     storage: HW_STORAGE_EMMC
     boundary_check: true
     is_reserved: false
     operation_type: PROTECTED
     reserve: 0×00

    - partition_index: SYS5
     partition_name: protect2
     file_name: NONE
     is_download: false
     type: EXT4_IMG
     linear_start_addr: 0×1280000
     physical_start_addr: 0×1280000
     partition_size: 0xa00000
     region: EMMC_USER
     storage: HW_STORAGE_EMMC
     boundary_check: true
     is_reserved: false
     operation_type: PROTECTED
     reserve: 0×00

    - partition_index: SYS6
     partition_name: seccfg
     file_name: NONE
     is_download: false
     type: NORMAL_ROM
     linear_start_addr: 0x1c80000
     physical_start_addr: 0x1c80000
     partition_size: 0×40000
     region: EMMC_USER
     storage: HW_STORAGE_EMMC
     boundary_check: true
     is_reserved: false
     operation_type: INVISIBLE
     reserve: 0×00

    - partition_index: SYS7
     partition_name: lk
     file_name: lk.bin
     is_download: true
     type: NORMAL_ROM
     linear_start_addr: 0x1cc0000
     physical_start_addr: 0x1cc0000
     partition_size: 0×60000
     region: EMMC_USER
     storage: HW_STORAGE_EMMC
     boundary_check: true
     is_reserved: false
     operation_type: UPDATE
     reserve: 0×00

    - partition_index: SYS8
     partition_name: boot
     file_name: boot.img
     is_download: true
     type: NORMAL_ROM
     linear_start_addr: 0x1d20000
     physical_start_addr: 0x1d20000
     partition_size: 0×1000000
     region: EMMC_USER
     storage: HW_STORAGE_EMMC
     boundary_check: true
     is_reserved: false
     operation_type: UPDATE
     reserve: 0×00

    - partition_index: SYS9
     partition_name: recovery
     file_name: recovery.img
     is_download: true
     type: NORMAL_ROM
     linear_start_addr: 0x2d20000
     physical_start_addr: 0x2d20000
     partition_size: 0×1000000
     region: EMMC_USER
     storage: HW_STORAGE_EMMC
     boundary_check: true
     is_reserved: false
     operation_type: UPDATE
     reserve: 0×00

    - partition_index: SYS10
     partition_name: para
     file_name: NONE
     is_download: false
     type: NORMAL_ROM
     linear_start_addr: 0x3d20000
     physical_start_addr: 0x3d20000
     partition_size: 0×80000
     region: EMMC_USER
     storage: HW_STORAGE_EMMC
     boundary_check: true
     is_reserved: false
     operation_type: INVISIBLE
     reserve: 0×00

    - partition_index: SYS11
     partition_name: logo
     file_name: logo.bin
     is_download: true
     type: NORMAL_ROM
     linear_start_addr: 0x3da0000
     physical_start_addr: 0x3da0000
     partition_size: 0×800000
     region: EMMC_USER
     storage: HW_STORAGE_EMMC
     boundary_check: true
     is_reserved: false
     operation_type: UPDATE
     reserve: 0×00

    - partition_index: SYS12
     partition_name: expdb
     file_name: NONE
     is_download: false
     type: NORMAL_ROM
     linear_start_addr: 0x45a0000
     physical_start_addr: 0x45a0000
     partition_size: 0xa00000
     region: EMMC_USER
     storage: HW_STORAGE_EMMC
     boundary_check: true
     is_reserved: false
     operation_type: INVISIBLE
     reserve: 0×00

    - partition_index: SYS13
     partition_name: frp
     file_name: NONE
     is_download: false
     type: NORMAL_ROM
     linear_start_addr: 0x4fa0000
     physical_start_addr: 0x4fa0000
     partition_size: 0×100000
     region: EMMC_USER
     storage: HW_STORAGE_EMMC
     boundary_check: true
     is_reserved: false
     operation_type: INVISIBLE
     reserve: 0×00

    - partition_index: SYS14
     partition_name: nvdata
     file_name: NONE
     is_download: false
     type: EXT4_IMG
     linear_start_addr: 0x50a0000
     physical_start_addr: 0x50a0000
     partition_size: 0×2000000
     region: EMMC_USER
     storage: HW_STORAGE_EMMC
     boundary_check: true
     is_reserved: false
     operation_type: INVISIBLE
     reserve: 0×00

    - partition_index: SYS15
     partition_name: metadata
     file_name: NONE
     is_download: false
     type: NORMAL_ROM
     linear_start_addr: 0x70a0000
     physical_start_addr: 0x70a0000
     partition_size: 0×2760000
     region: EMMC_USER
     storage: HW_STORAGE_EMMC
     boundary_check: true
     is_reserved: false
     operation_type: INVISIBLE
     reserve: 0×00

    - partition_index: SYS16
     partition_name: oemkeystore
     file_name: NONE
     is_download: false
     type: NORMAL_ROM
     linear_start_addr: 0×9800000
     physical_start_addr: 0×9800000
     partition_size: 0×200000
     region: EMMC_USER
     storage: HW_STORAGE_EMMC
     boundary_check: true
     is_reserved: false
     operation_type: INVISIBLE
     reserve: 0×00

    - partition_index: SYS17
     partition_name: secro
     file_name: secro.img
     is_download: true
     type: NORMAL_ROM
     linear_start_addr: 0x9a00000
     physical_start_addr: 0x9a00000
     partition_size: 0×600000
     region: EMMC_USER
     storage: HW_STORAGE_EMMC
     boundary_check: true
     is_reserved: false
     operation_type: UPDATE
     reserve: 0×00

    - partition_index: SYS18
     partition_name: keystore
     file_name: NONE
     is_download: false
     type: NORMAL_ROM
     linear_start_addr: 0xa000000
     physical_start_addr: 0xa000000
     partition_size: 0×800000
     region: EMMC_USER
     storage: HW_STORAGE_EMMC
     boundary_check: true
     is_reserved: false
     operation_type: INVISIBLE
     reserve: 0×00

    - partition_index: SYS19
     partition_name: system
     file_name: system.img
     is_download: true
     type: EXT4_IMG
     linear_start_addr: 0xa800000
     physical_start_addr: 0xa800000
     partition_size: 0×45000000
     region: EMMC_USER
     storage: HW_STORAGE_EMMC
     boundary_check: true
     is_reserved: false
     operation_type: UPDATE
     reserve: 0×00

    - partition_index: SYS20
     partition_name: cache
     file_name: cache.img
     is_download: true
     type: EXT4_IMG
     linear_start_addr: 0x4f800000
     physical_start_addr: 0x4f800000
     partition_size: 0×10000000
     region: EMMC_USER
     storage: HW_STORAGE_EMMC
     boundary_check: true
     is_reserved: false
     operation_type: UPDATE
     reserve: 0×00

    - partition_index: SYS21
     partition_name: userdata
     file_name: userdata.img
     is_download: true
     type: EXT4_IMG
     linear_start_addr: 0x5f800000
     physical_start_addr: 0x5f800000
     partition_size: 0×60000000
     region: EMMC_USER
     storage: HW_STORAGE_EMMC
     boundary_check: true
     is_reserved: false
     operation_type: UPDATE
     reserve: 0×00

    - partition_index: SYS22
     partition_name: flashinfo
     file_name: NONE
     is_download: false
     type: NORMAL_ROM
     linear_start_addr: 0xFFFF0084
     physical_start_addr: 0xFFFF0084
     partition_size: 0×1000000
     region: EMMC_USER
     storage: HW_STORAGE_EMMC
     boundary_check: false
     is_reserved: true
     operation_type: RESERVED
     reserve: 0×00

    - partition_index: SYS23
     partition_name: sgpt
     file_name: NONE
     is_download: false
     type: NORMAL_ROM
     linear_start_addr: 0xFFFF0004
     physical_start_addr: 0xFFFF0004
     partition_size: 0×80000
     region: EMMC_USER
     storage: HW_STORAGE_EMMC
     boundary_check: false
     is_reserved: true
     operation_type: RESERVED
     reserve: 0×00

    delete lng nyu yung "BIRDTOOLMINVER[4.0]"
    then save .









    • 03/20/2014
      Posts: 6

      confirming this solution. it worked on any of the roms listed here.

      open the scatter file, and remove the entry on the first line "BIRDTOOLMINVER[4.0]"





  10. 03/20/2014
    Posts: 6

    CWM through MTK droid tools possible? everytime na subukan kong gawin, nde umuubra. No split boot image ang error palagi.




Leave a Reply

You must be logged in to post a comment.

banner
