  • Title: Galaxy Gio S5660
  • Listed: 02/23/2013 4:18 pm
  • ROM Version: ROM Android 2.3.6
  • You must be logged for ROM download.



Overall Rating : 4

5549 total views, 2 today

10 Total favorites




Galaxy Gio S5660

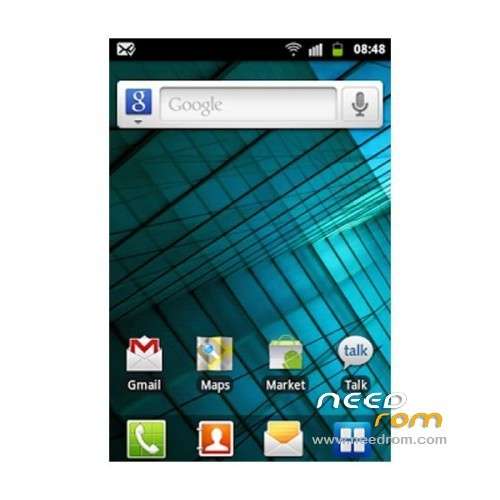

Galaxy Gio S5660 - Image 1

Author adMember Info

SoCr@Te

  • Listed by: SoCr@Te
  • Member Since: 05/15/0470

DESCRIPTION


ROM Galaxy Gio S5660 – ROM Android 2.3.6



Features ROM :



PDA: S5660XXKTU
CSC: S5660ITVKT4
Version: 2.3.6
Regions: Austria, Belgium, France, Germany, Hungary, Italy, Spain, United Kingdom



ROM Install :

Extract Firmware zip file that you downloaded already from above link, you will get a .tar file and some other files.

Extract Odin zip file and you will get Odin3 v3.07.exe along with few other files.

Power off your phone. Wait 5-6 seconds for vibration to confirm complete switch off.

Now, put the Galaxy Gio S5660 phone in Download Mode by pressing pressing and holding down the Volume Down, Home and Power button and you will be soon welcomed by a green robot indicating you are in Download Mode.

Now run Odin3 v3.07.exe (see Step 2) as an Administrator because Admin privileges is required to complete the process smoothly.

Now connect your Galaxy Gio S5660 with your PC using USB cable. A message will arrive under Odin’s message box in the bottom left saying “Added!!”. If you don’t get the same then you should try another USB port (try USB port located in back in your desktop PC). If that too don’t work then you should then reinstall the driver. If you successfully see the “Added!!” message in Odin then you are ready to go in next step. You should also see COM port with a number in Yellow if you successfully added your device.

Select these files in Odin at respective buttons from extracted S5660XXKTU firmware folder :

Click the PDA Button, and select the .tar file here with *code* appearing in its name

Click the Phone Button, and select file with *modem* in its name (leave it blank if there is no such file)

Click the CSC Button, and select file with *csc* in its name (leave it blank if there is no such file)

Click the PIT Button, and select the .pit file. Use only if you got it while extracting in step 1 above, otherwise ignore it.

In Odin window, make sure Auto Reboot and F. Reset Time checkboxes are selected. Also, make sure that Re-Partition checkbox is selected, only if you are using a .pit file (see Step 7.4).

Double check everything that we mentioned in Step 7 & Step 8 above. Now, once satisfied hit the START button to begin the flashing process.

Once flashing completed, the phone will reboot automatically and soon you will see a PASS message with green background in the left-most box at the very top of the Odin. You can then unplug the USB cable to disconnect your device from computer.


Share Button

※Please make a backup of your device before installing or updating ROM
