Ulefone
  • Title: L861 –ISRAEL
  • Listed: 11/01/2016 3:56 am
  • ROM Version:Android 5.1 - Build V1.1 2015-07-17
  • You must be logged for ROM download.



Overall Rating : 0

142 total views, 2 today

6 Total downloads



L861 –ISRAEL
L861 - ISRAEL - Image 1L861 - ISRAEL - Image 2L861 - ISRAEL - Image 3L861 - ISRAEL - Image 4L861 - ISRAEL - Image 5L861 - ISRAEL - Image 6L861 - ISRAEL - Image 7

Author adMember Info

rawmain


DESCRIPTION



Disclaimer


The usual stuff :


This package might be most suitable for experienced users but everybody is welcome to use it at his own risk.


Flashing / Rooting your phone and using software tools have risks indeed = if instructions aren't followed you can BRICK YOUR DEVICE. Therefore please read carefully all of the instructions &follow them if You choose to go on at your own risk.


If You don't understand the instructions stop &search on Google/Boards/XDA/etc. and / or ask for help.


All the mentioned software &tools belong to their respective owners/developers. Neither I nor the owners / developers are not to be held responsible if you damage or brick your device.




Package Contents :

* Stock Factory Image Android 5.1 –L861 Build Israel V1.1 2015-07-17

- SP Flash Tool (Windows &Linux64bit) &MTK VCOM/ADB Drivers (Windows)


- MTK Engineering Mode APK






Before proceeding


Write down your phone's IMEI


You can find it printed on a sticker that is affixed to the phone underneath the battery.


You'll have indeed to apply / restore it after ROM flash according to provided instructions.




ROM Flashing


Pre-Requirements :


-          Preloader USB VCOM MTK6795 Driver support


-          SP Flash Tool


If You don't have already installed them You can search on Google/XDA in order to find download/install instructions for Your specific operating system.


VCOM Driver package for Windows (from XP to 10) &SP Flash Tool (Windows &Linux-64bit) have been included in this package for your convenience.





Once ready launch SP Flash Tool with Administrative privileges, go to Download Tab and click on 'Scatter Loading'by the right.


In the window that pops up, go to the folder where You've extracted the rom You've chosen (Factory Image 1.06 or Custom ROM LCK76 Pre-Root + TWRP), and select the scatter (scatter file is a text file with the word "scatter"in its name) then click Open.

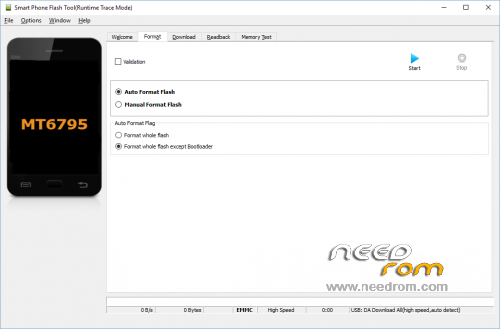

1. Click Format at the top.


2. After clicking Format, a dialogue box will pop up, ensure that 'Auto Format Flash'and 'Format whole flash without Bootloader'are selected.


3. Click OK, Stop should now be red or green in color.


4. Connect the switched off phone (with battery inside) to the PC via USB cord.


5. A progress bar should load till you get a 'Success'message (green circle with OK).


6. Disconnect the phone from PC.

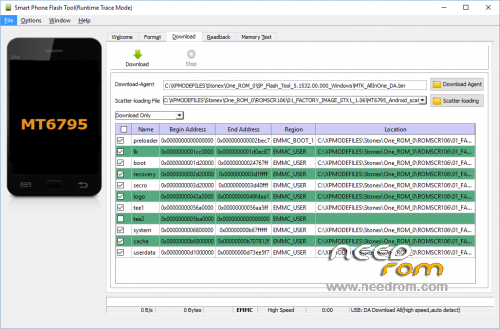

7. Go back to Download Tab and ensure that formerly selected scatter file &list with ticked boxes appears in SP flash tool.


8. Click Download (with an arrow above it). You'll see that Stop should now be prominent while other options should be grayed out.


9. Connect the switched off phone (without battery inside) to the PC via USB cord.


10. A progress bar should start running. Wait till you get a Success message (green circle with OK) and do not interrupt before then.


Once You've got the 'Success Message'disconnect the phone, slot the battery back in, then power up the phone.




Apply / Restore IMEI


After flashing You'll have to apply / restore mobile phone IMEI (that You have written down before). In order to do so You can use app MTK Engineering Mode by TheMonster - available on Play Store :


https://play.google.com/store/apps/details?id=com.themonsterit.EngineerStarter


MTK Engineering Mode APK has been included in this package for Your convenience. Remember to enable 'Unknown Sources'in Settings Security if You want to install it offline instead of downloading it from Google Play Store.

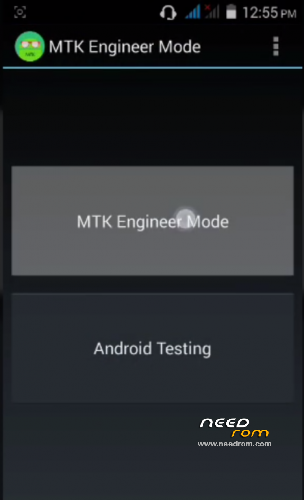

1.Tap on MTK Engineer Mode

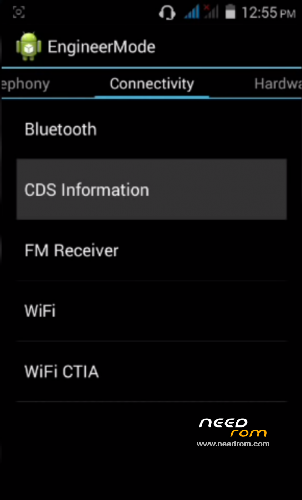

2.Tap on CDS Information

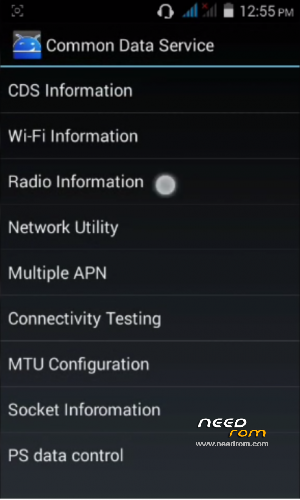

3.Tap on Radio Information

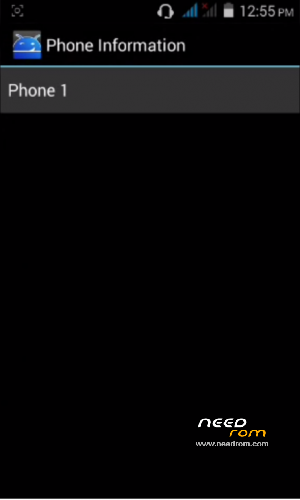

4.Tap on Phone 1

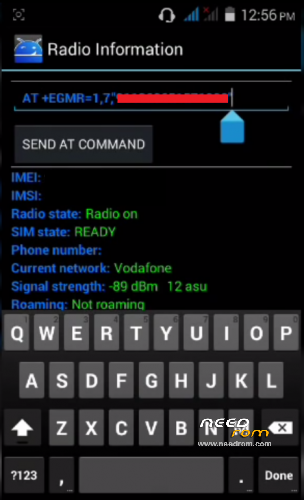

5. Digit the AT Command string (paying attention to spaces) :


AT +EGMR=1,7,"867833xxxxxxxxx"


Replace 867833xxxxxxxxx with Your IMEI &tap on Send AT Command






References









涛声依旧161502 (Baidu)





http://pan.baidu.com/share/home?uk=3979659136
