DESCRIPTION

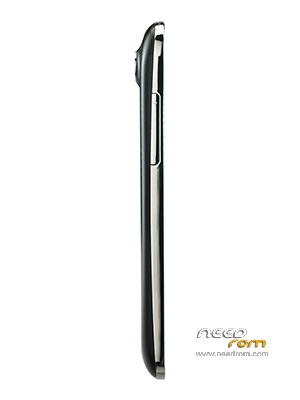

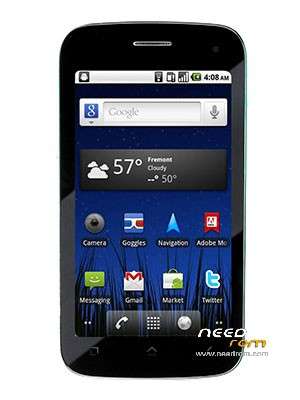

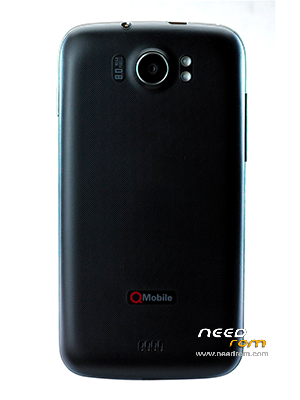

Qmobile Noir A10

Overall Specification

Size                           147×76.5×9.7mm

SIMs                           Dual SIM

Battery                        Li-Ion 2000 mAh

OS                              Android 4.0 (Ice Cream Sandwich)

Memory                       4 GB built-in, 512MB RAM, microSD card (supports up to 32GB)

Processor                    1GHz Dual core

Display Size                 147×76.5×9.7mm    480 x 854 pixels   5" IPS FWVGA LCD Display

Rear Camera                 8 Mega Pixel Camera

Front Camera                1.3 Mega Pixel Camera

Network                        GSM 900/1800/1900 WCDMA 900/2100

                                    3G, GPS, GPRS/EDGE, WAP/MMS, WLAN, Bluetooth

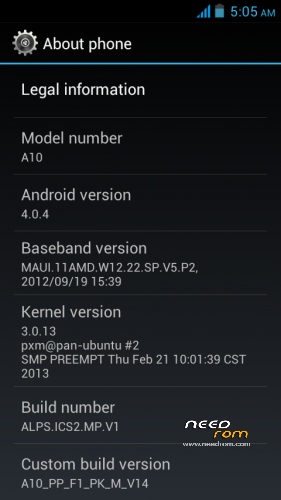

Technical Details

Hardware : MT6577
Model : A10
Build number : ALPS.ICS2.MP.V1
Build date UTC : 20130204-060511
Android  v : 4.0.4
Baseband v: MAUI.11AMD.W12.22.SP.V5.P2, 2012/09/19 15:39
Kernel v : 3.0.13 (pxm@pan-ubuntu) (gcc version 4.4.3 (GCC) ) #2 SMP  Thu Feb 21 10:01:39 CST 2013
Uboot build v : MAIN2.2.ubt.3941
LCD Driver IC : 1-lt5002f_otm8009a_24bits

How to Flash..!

First of all, make sure that you have MediaTek USB VCOM drivers installed. use "Qmobile_Android_usb_driver.zip"

Download latest SP flash tools v 5.13 from

http://www.mediafire.com/download/5f5h3owa7s7y6g2/SP-Flash-Tool-v5.1352.01.zip

or from https://app.box.com/s/q1jvksn59qw1wtww7k5s

To Downlaod Rom,  Make an account on Needrom.com and disable any popup blocker utility if installed.

1- Download all 4 parts of stock Rom & check MD5 Hashes before further proceeding.

Stock Rom Spflash.part1 (MD5: d30e9d9797c8bfe8f2fdb6b623c5e961)

Stock Rom Spflash.part2 (MD5: c04a4bc5258943739de073885dc39d18)

Stock Rom Spflash.part3 (MD5: ec76906c88d993d93bbb159dbd1d2e77)

Stock Rom Spflash.part4 (MD5: 784db447d389230911bb52ce3c2fd87d)

2- Use  WinRar to extract all parts into one folder.

3- Activate USB debugging from Developer options. Then switch off Your phone and remove battery.

4- Open SP Flash tool folder and click on Flash_Tool.exe

5- Browse to the scatter File MT6577_Android_scatter_emmc.txt in the stock rom folder and ignore any message that may appear

6- Make sure all item are checked except USRDATA and CACHE. Then press F9 (or hit Download button)

7- Connect your phone (without battery) into the computer via USB data cable.

8- The process will start and a red progress bar will appear.

9- After the red progress bar is complete, there will appear a purple progress bar, then yellow progress bar.

10- When the yellow bar is complete, you'll get a pop-up with a green circle and Download OK message,
which means that the process has been successfully terminated.

11- You are done. Put the battery in and Power on the mobile.

12- Enjoy your new Alive Handset.

Note: if you want to replace the original stock recovery with CWM recovery, then download & rename "recovery(CWM).img" with "recovery.img" and copy, paste/overwrite it in stock rom folder. Then do the above all procedure.

Credit:

Imtiaz ahmad Khan

※Please make a backup of your device before installing or updating ROM
