• Title: STAR N9589
  • Listed: 01/07/2014 2:41 am
  • ROM Version: ROM Android 4.2.1
  • You must be logged for ROM download.



38 votes, average: 3.89 out of 538 votes, average: 3.89 out of 538 votes, average: 3.89 out of 538 votes, average: 3.89 out of 538 votes, average: 3.89 out of 5 38

53543 total views, 15 today

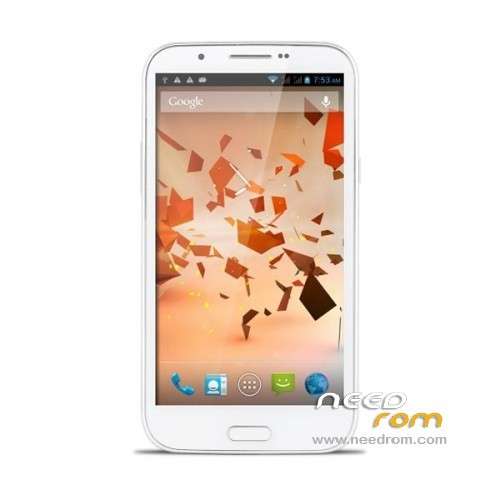

STAR N9589

Author adMember Info

SoCr@Te

  • Listed by: SoCr@Te
  • Member Since: 05/15/0470

DESCRIPTION


ROM STAR N9589 – ROM Android 4.2.1

UPDATE ROM Official : N9589-20130423_e2001_v89_gq2008s

2013.04.23 Fengjun
PCCW to solve or CSL SIM card , the phone displays signal loss problems

———————————————————————————————————————————————–



UPDATE ROM Official : N9589-20130403_e2001_v89_gq2008s ( Compatible gsensor, look PDF gsensor)



UPDATE ROM Official : N9589-20130314_e2001_v89_gq2008s



UPDATE ROM Official : N9589-20130316_e2001_v89_gq2-008s

Solve the problem of distance sensor



UPDATE ROM Official : N9589-20130323_e2001_v89_gq2008s



ROM Official : N9589-20130222_e2001_v89_gq2008s-46958477-79501744

this rom was requested by Geniom :)

ROM Install :

Unpacked driver installation and install.
To unpack SP_Flash_Tool_exe_v3.1252.1.104.zip run Flash_tool.exe
Select a the in scatter_emmc.txt in ROM
Click Flash_tool.exe interface Firmware-> Upgrade

Phone after taking the battery in put something
Connect the data cable
Brush finished with green circles appears

or

1, the wire brush tool:
2: Download custom card brush ROM copied to the third step of the external SD card root directory: turned off one end of the phone, data cable, one end of the computer’s port. While holding down:
Power button + volume button to enter the recovery Brush mode, clear user data and cache, and then enter the card brush options Brush can.
3: Brush complete, restart the phone

or tuto geniom

you must install the driver before you connect the device.
turn off the device, remove the battery, attouch the device and start the installation driver.
After disconnect the device, leave disconnected. run flashtool select scatter and select ONLY recovery.
Click download and accept with yes.
when in down of tools appears Searcing, connect the phone without the battery.
Com 16 or similar is showed and the cwm is loaded.
After, insert the battery turn on the phone normally.
Copy the zip of this rom in sd card and turn off the phone.
turn on with volume + and power button and go in sd, select the file and install this.
the phone is goung to restart and the rom is installed.
But the key are only in chinese and othe word are in chinese. some application is present only in chinese.

good luck


Install with SP MDT:

Unpack the archive SP_MDT_exe_v3.1304.00_A2013.02.26_customer6589.rar and archive with the ROM

1). Turn off the smartphone. Cable is not connected to the computer.

2). Remove the battery and insert it again

3). Connect your phone to a computer cable. The operating system detects a new device

4). Disconnect the cable from the computer.

5). Run SPMultiPortFlashDownloadProject.exe

6). Choose Database Factory menu> Configuration File data source and specify the file MTK_DATABASE.mdb (it is in the folder SP_MDT).

7). Choose File> Open File Agent download and specify the file MTK_AllInOneDA.bin (it is in the folder SP_MDT).

8). Click File and select the MT6589_Android_scatter_emmc.txt file (it's in the folder with the rom).

9). (The most important.) Many complain that the phone after flash based MT6589 "fall" camera (front or rear), the display does not work properly (shows nothing, tilt, brightness bad , wrong color, etc..) The thing is that the manufacturer changes the device over time. Different batches of devices can be different matrix of the camera, the display controller different. To account for these situations uboot firmware file includes all drivers possible (at the time of insertion) for the cameras and the display device specific. All you need to do – is to specify the correct front sensors and a rearview camera and a display controller faithful (see screenshot at the end of the manual). SENSORS not prescribe NAMES CHOOSE THE RIGHT hand only BY GETTING sensor button. N9589 for 99% of the need to choose this options:

Main sensor = ov8825_mipi_raw (back to camera),  Sub sensor = ov3660_yuv (front), LCDRX_572OTM_501A (display)

10). The other parameters are fixed, as in the screenshot below.

11). Click "Start all".

12). Connect your phone to a computer cable. The program should see and blink. If the phone is not detected, then unplug it from the computer, remove and insert the battery and reconnect it to the computer.

13). After (OK) click Stop and disable any phone.

14). Completed.





ROOT: (THX to aabc982 )

Tools you need:TOOLS-ROOT-aabc982.rar

steps:

copy this MT6589-SupperRoot-by-ydss.cn.zip to you EXTERNAL sd card and now reboot recovery…..

now in your custom recovery you can root your device, now,… be advice this recovery is inchinesse but it is very user friendly, so now in the recovery press the first left buttom, it will display the content in your external sd card, since this is touch recovery just scroll down until you find your MT6589-SupperRoot-by-ydss.cn.zip then click it, it will appear a menu and at the bottom a bar like unlock screen in android, just slide it from left to rigth that will install the superRoot and root explorer, after that just reboot your phone with the rigth key on screen and voila!! you now have your phone rooted


SOORY I FORGOT TO TELL YOU INSIDE THE FOLDER COMES CUSTOM RECOVERY, SCATTER FILE AND SP FLASH TOOL YOU FIRST NEED TO FLASH CUSTOM RECOVERY WITH SP FLASH TOOL, THEN YOU HAVE TO CONTINUE WITH THE STEPS TO ROOT, THANKS



I LEAVE YOU THIS VIDEO I MADE AS REFERENCE, WATCH IT



ANY DOUBTS? WELL YOU CAN LEAVE YOUR QUESTIONS IN THE VIDEO AND I WILL TRY TO SOLVE IT, THANS TO THE GUY THAT MADE THIS TREAD. AND THE ROMS UPLOADED NOW I HAVE MY PHONE ROOTED. SEE YA GUYS



CWN of kostasaerakis :

recovery CWN to mtk6589 phone

very good job

Thanks to Mlais for bringing CWM to MTK6589 Phone

Share Button

No Tags

123 Responses to“STAR N9589”







  1. 03/18/2013
    Posts: 1

    Rom N9589-20130222_e2001_v89_gq2008s fail Boot….Blank Screen ^^"

    New Rom N9589-20130314_e2001_v89_gq2008s Cannot read my sim card

    what should i do with my phone?…..

    Thx.





    • 03/19/2013
      Posts: 6

      I got the same boot fail/black screen problem, after I tried the newest "N9589-20130314"-Rom via SP MDT. But after changing the LCD driver to "RX_572OTM_501A", it's working fine! Also the autofocus problem of the cam is fixed with the new Rom.

      You can also check what components are installed in your phone if you start it with both volume (+ and – simultaneous) and power button pressed. You will get into a blue service programm, where you can also see the built in components.



      My N9589 was sold as "HDC Galaxy Note 2 N9589".





  2. 05/15/0470
    Posts: 706

    and custom ? http://www.needrom.com/mobile/star-n9589/





    • 03/19/2013
      Posts: 6

      Thank you very much for updating to the new official rom! :-)

      The new 03/14 rom is Android 4.2.1., which runs just great!

      Could you also update this site with new rom versions in future, if there will be any released? That would be really great! :-)



      Thanks again,

      Hanz





    • 03/19/2013
      Posts: 6

      Or could you call me the official site, where the roms will be released?





    • 05/15/0470
      Posts: 706

      I do not know
      never found their website to star





  3. 03/18/2013
    Posts: 3

    Can somebody give me the link to the firmware from the 27.02.2013?





  4. 03/18/2013
    Posts: 3

    Sorry for my English, I use the Google translator.

    The new version works on my phone now. Only if you put the phone into sleep mode, it can not be immediately re-activate, otherwise the screen remains black. You have to wait about 15-20 seconds, until you can unlock the screen again.

    Is this ever noticed someone or is that just in my phone.







  5. 03/18/2013
    Posts: 1

    désolé, je n'ai pas recovery installé, comment faire?





  6. 03/22/2013
    Posts: 4

    HI… obebody help me… My N9589 with model code e2001_v89_gq2008s_130227 soft brick, Boot up without display…





    • 03/19/2013
      Posts: 6

      Use SP MDT and try a different LCD driver in the pop-up menu. Start with "RX_572OTM_501A", that worked for me.

      And for everyone else, before flashing, check this please:

      "You can also check what components are installed in your phone if you start it with both volume (+ and – simultaneous) and power button pressed. You will get into a blue service programm, where you can also see the built in components."





  7. 05/15/0470
    Posts: 706

    used flashtool or sp mdt ?





  8. 03/22/2013
    Posts: 4

    Unable to use mdt… Only Flashtool…







  9. 03/19/2013
    Posts: 6

    This should be the older rom (130227) you are searching for: http://kuai.xunlei.com/d/p3RSBAJiPwCUKDZRe05 – Click on the name and then on the right chinease button. It will take a while, but the download will start.





  10. 03/19/2013
    Posts: 6

    Thank you for the new version (03/16)!  But root method shown in this thread isn't working for me. I always get a "Installation aborted" message after trying to install the zip folder.





    • 01/29/2014
      Posts: 9

      I have a question about SP MDT,,,, i've tried everything, but in my case there are no drivers to choose in popup menu,,, its alll blank… does anyone know what's wrong ? I cant choose my display driver.







  11. 03/22/2013
    Posts: 2

    Thank's for this work.

    For me it's the same, "installation aborted" when trying to apply root update, both through sdcard and through adb sideload.





  12. 03/18/2013
    Posts: 3

    I have found a link to a firmware for the Star N9589. I have tested it now, two days and the phone works. There's no problem with the distance sensor.

    Android 4.2.1

    http://kuai.xunlei.com/d/p3RSBAL4gwDtv0BRec4

    For flashing use SP-MDT.





  13. 03/23/2013
    Posts: 6

    same here i already try the root and says installation aborted, some wrong maybe signature, but for the rom 03-14 and 03-16 works great i have the n9589 white, it is working great, thanks a lot for all your effort and time to leave this roms to us.



    it will be great if you can post a CWM recovery. the v6 and v5 is not working in my phone when i try to boot   into recovery mode the phone just stops in a black screen i just remove battery and let the phone boot normally, i hope you can sometime soon leave a custom recovery for us, in adition i will keep looking if i find anything i let you know,

     thank you
