- Title: STAR N9589
- Listed: 04/12/2013 1:05 am
- ROM Version: ROM Android 4.2.1
You must be logged for ROM download.
5716 total views, 1 today
30 Total favorites
ROM Mobile STAR N9589 – ROM Android 4.2.1
Model name:STAR N9589 (4G / 8G)
ROM Author:Based on the the official original
ROM version number:V89GQ2008S20130403
Based on the official version:N9589-20130403_e2001_v89_gq2008s
Reference other authors:YZYWXF and Baidu Post Bar

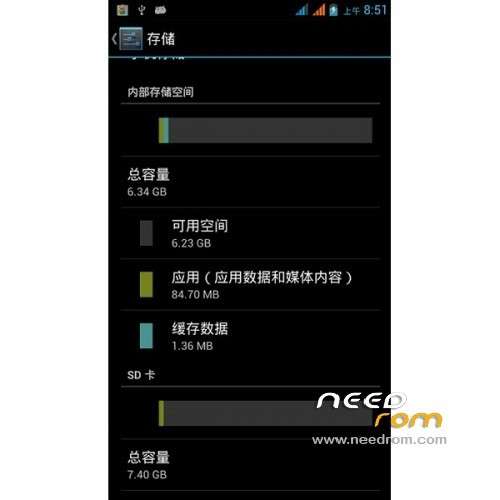

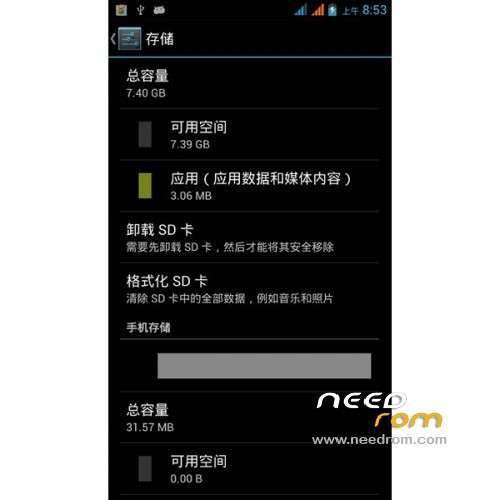

The official original modify the internal storage capacity of 6.25G (for 8G but 2.5G for 4G), Root joined
Language support: Multilang
Install with SP MDT:
Unpack the archive N9589-SPM.zip and archive with the ROM
1). Turn off the smartphone. Cable is not connected to the computer.
2). Remove the battery and insert it again
3). Connect your phone to a computer cable. The operating system detects a new device
4). Disconnect the cable from the computer.
5). Run SPMultiPortFlashDownloadProject.exe
6). Choose Database Factory menu> Configuration File data source and specify the file MTK_DATABASE.mdb (it is in the folder SP_MDT).
7). Choose File> Open File Agent download and specify the file MTK_AllInOneDA.bin (it is in the folder SP_MDT).
8). Click File and select the MT6589_Android_scatter_emmc.txt file (it's in the folder with the rom).
9). (The most important.) Many complain that the phone after flash based MT6589 "fall" camera (front or rear), the display does not work properly (shows nothing, tilt, brightness bad , wrong color, etc..) The thing is that the manufacturer changes the device over time. Different batches of devices can be different matrix of the camera, the display controller different. To account for these situations uboot firmware file includes all drivers possible (at the time of insertion) for the cameras and the display device specific. All you need to do – is to specify the correct front sensors and a rearview camera and a display controller faithful (see screenshot at the end of the manual). SENSORS not prescribe NAMES CHOOSE THE RIGHT hand only BY GETTING sensor button. N9589 for 99% of the need to choose this options:
Main sensor = ov8825_mipi_raw (back to camera), Sub sensor = ov3660_yuv (front), LCD = RX_572OTM_501A (display)
10). The other parameters are fixed, as in the screenshot below.
11). Click "Start all".
12). Connect your phone to a computer cable. The program should see and blink. If the phone is not detected, then unplug it from the computer, remove and insert the battery and reconnect it to the computer.
13). After (OK) click Stop and disable any phone.
※Please make a backup of your device before installing or updating ROM
