Stylus Pen TouchScreen Driver For Umi Cross

Author adMember Info

CodeRed


DESCRIPTION


Install & Upgrade electromagnetic pen and ultra-sensitive touch screen driver:

ADB tool configuration tutorial introduction:
, the phone is open USB debugging option, and the phone does not tune into hibernation or sleep mode after a long wait, and then the phone into the computer.

Note : ( if usb error to goodix adb tools, software comes with (adb files in the folder) adb commands needed to: adb.exe, AdbWinApi.dll, AdbWinUsbApi.dll, such as copy it to C:WindowsSystem32 folder )

Note : ( Problem; Adbtools not work. Solve; can install : Microsoft Visual C + + 2008 SP1 Redistributable Package "x86" )

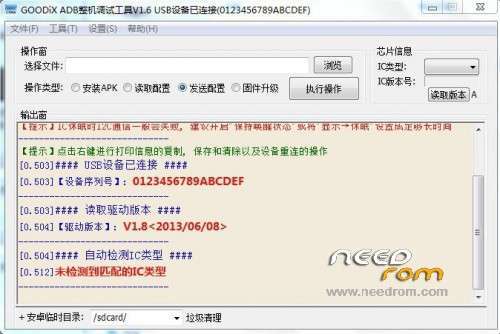

2 . open the attachment in the ADB tool, as shown below:

3 . in the top right corner of the interface " IC Type "select" GT918 ", then click on" Read Version ", as shown below:

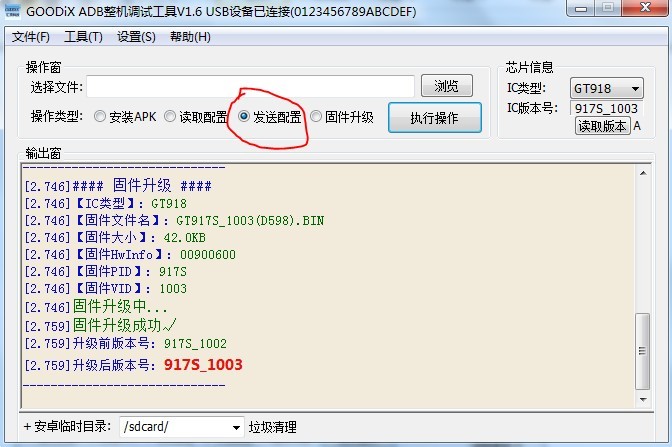

, select "Send Configuration" option, as shown in the figure at the red circle marks:

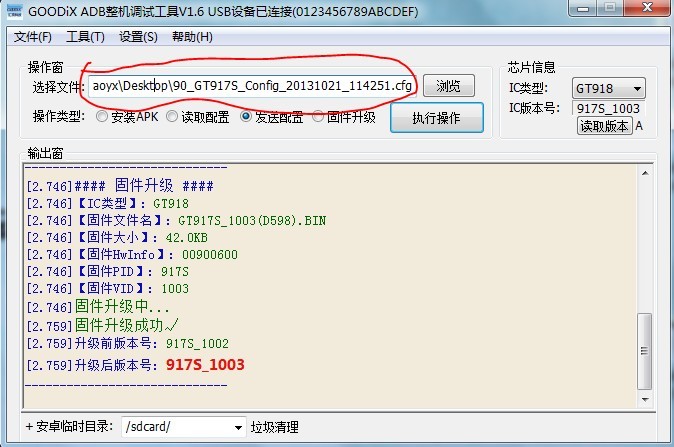

5 . the drive file onto the input box select to c1-ultra-sensitive-screen-support-handwriting.cfg, as shown in Figure red circle mark:

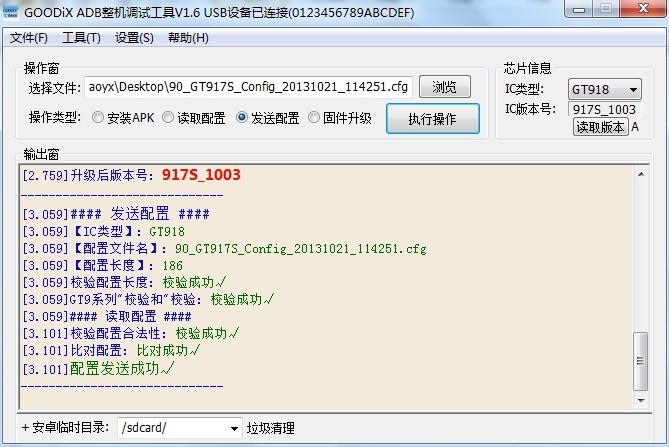

6 . click on the "action", after the success prompts sent successfully, as shown below:

The user can choose according to their acceptability, upgrade or uninstall the ultra-sensitive screen and electromagnetic pen drives, thanks to the Umi Cross phone support and attention! Thank you SuperMan

Remove & Factory default touch screen driver:
1.Select to red circle mark,

2.the drive file onto the input box select to G6-Factory-Default.cfg, as shown in Figure red circle mark:

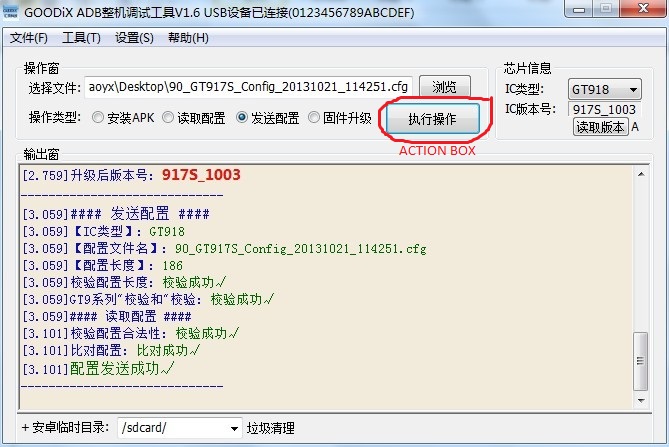

3. Select Action Box,

Finish installation to factory default screen driver.

Share Button

※Please make a backup of your device before installing or updating ROM


5 Responses to“Stylus Pen TouchScreen Driver For Umi Cr”







  1. 11/27/2013
    Posts: 21

    when i go to gtp tools and try sensor test or any selection these pop out  'node cannot be empty' and 'the driver mobile devices used is not support the function'. meaning driver not installed?

    kindly explain how to get it to work.

    tq.





  2. 04/07/2014
    Posts: 1

    I did all the things but nothing happened. after I send configuration what do i have to do ? i have reebooted.

    do we need to wipe data ? install stuff ? can you explain some more please ?

    thanks





  3. 06/21/2013
    Posts: 3

    Thanks





  4. 01/17/2015
    Posts: 7

    hi i have an umi x3 an my toch screen is inverte only touch not lcd some ideas? pls. thank you
