DESCRIPTION
Before you answer
Read question Understand question and then answer question
I need a Firmware Rom for this device not the Update.zip because I have to flash it with the SP Flashtool because the radio only shows a black screen

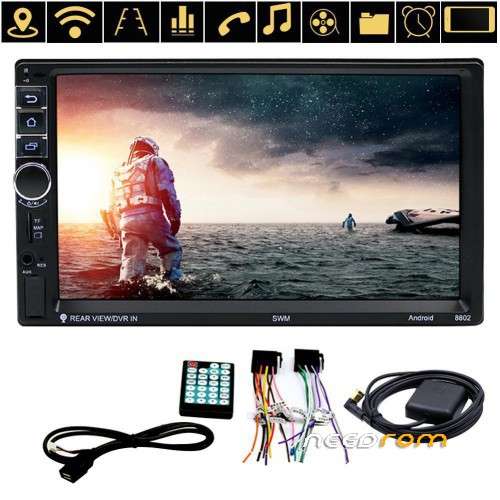

SWM8802 7in TFT Touch Screen 2 Din Quad-core Android OS Bluetooth Car GPS

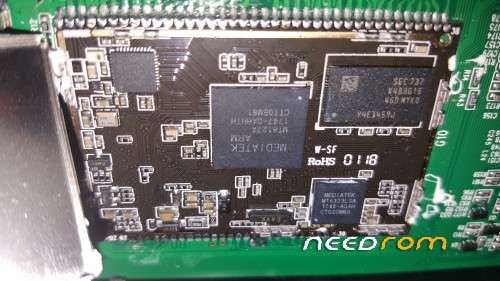

CPU: 4-core, 1.3G MT8127
Version Number: ALPS.LD-KK1.MP10.V1.4 or ALPS.LD-KK1.MP10.V1.6
Specifics: Capacitive, 1.6GHzCPU, WIFI, 3G, IPOD, MP3, MP5, Android
Screen resolution: 1024 x 600, high-resolution capacitive screen
Functions: GPS Navi, Wifi, 3G, OBD2, BT, USB, Mirror Link, SWC, EQ, LOUD
USB Interface: 1 way for video, 1 way for buttcock line
Material: metal + plastic
Manufacturer: 1MP9CW2BU8LA7YS1
Screen: 7 inch TFT LCD capacitive touch screen, 1024 x 600, 16MP
Manufacturer's number: not applicable
Memory: 1 GB DDR3
Country of manufacture and region: China
ROM: 16 GB
Brand: N / A
Android OS: Android 4.4.1
MPN: 1MP9CW2BU8LA7YS1
EAN: 0721047527557
# begin mediatek build properties
ro.mediatek.version.release=ALPS.KK1.MP10.V1.6
ro.mediatek.platform=MT8127
ro.mediatek.chip_ver=S01
ro.mediatek.version.branch=KK1.MP10
ro.mediatek.version.sdk=2
ro.product.device=yecon27_tb_c_kk
ro.product.board=yecon27_tb_c_kk
ro.build.description=yecon27_tb_c_kk-user 4.4.2 KOT49H eng.android.1517223650 test-keys
ro.build.fingerprint=alps/yecon27_tb_c_kk/yecon27_tb_c_kk:4.4.2/KOT49H/1517223650:user/test-keys
# end mediatek build properties
※ No ROM to Downloaded on this post, the member search this ROM.
Hello xdidi00
Here are the link from 4pda in Russian where you can download the update.zip down for almost all MTK 8127 CPU set> https://4pda.ru/forum/index.ph.....385&st=760
Go to> Topic in English (read only) in the upper head. The update.zip can be found under> Updates, Firmware and Kernels. Have to wait with a bit of patience each time on a MicroSD with Fat 32 which brings your device back to work, the same is also intended for the MCU.
I wish you success
Greetings Uwe
Update for SWM8802 : https://drive.google.com/file/.....f8Pk9FRUya/view . Из этого обновления вы сможете собрать прошивку под флештул.
The build number in this archive with update 1.2, as I understood from build.prop: ro.build.display.id=ALPS.LD_kk1.MP10.V1.2
Or 1.6: ro.mediatek.version.release=ALPS.KK1.MP10.V1.6.
thanks
Android 5.1?
I already added here Rom, soon my firmware will be available. My firmware is for flash tool and rooted.
https://www.needrom.com/downlo.....ad/swm-8802-2/ this is rooted rom
pls resend URL thx
The link is broken. Can you post another link?

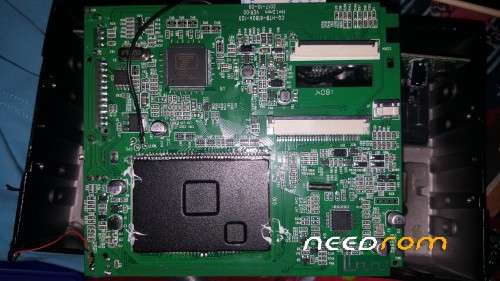

Tell me where is the Wi-Fi antenna? I inspected it from all sides, but found nothing of the kind. You have installed update zip. Version 5.5.1. I had a mirror touch, everything was fixed.
Скажи, у меня такаяже хрень, зеркальное прикосновение и плохой вайфай, ну всё как у тебя. расскажи как делал по шагово, если ты говориш, что всё исправилось.
The antenna is a short red wire hanging loose. Next to the soldered end is the ground lead for the antenna.
I downloaded the update.zip from this site (sandr_210), this zip uploaded to the memory card (not unpacking) formatted in FAT32, inserted it into the slot, opened the restore menu and there is an internal update item and further on the menu commands. The truth loaded Android 5.1, not 7.1, but it did not become a mirror. And Wi-Fi was specially made weak, I wanted to take out the antenna, but I do not know where. And on the forum write it is necessary to write in the English language. Luck, I write from memory, can what not so. Ask.
Hi, how bluetooth working. Seems like theres no bluetooth settings
can you please post flashable zip rom on a google drive, i cant download….
it is not working tried official then custom. my swm 8802 is dead, only appears some vertical lines when connected to pc in front usb. Please help.
This ROM for SP Flashtool?
there is a rom for flash tools, but i got in a bootloop and now i need new sp flash tool files
If someone likes to try, i can upload it.
Sotsky_a: perhaps you can contact with the rusian developer. I can send you the name in pm
nobody have a solution to fix ?
