• Title: CREO MARK 1 – FLYMEOS
  • Listed: 12/26/2016 2:59 am
  • ROM Version: Android 5.1 - FlyMEOS 6.6.11.30
  • You must be logged for ROM download.


Overall Rating : 0

423 total views, 1 today

32 Total downloads



CREO MARK 1 – FLYMEOS
CREO MARK 1 - FLYMEOS - Image 1CREO MARK 1 - FLYMEOS - Image 2CREO MARK 1 - FLYMEOS - Image 3CREO MARK 1 - FLYMEOS - Image 4CREO MARK 1 - FLYMEOS - Image 5CREO MARK 1 - FLYMEOS - Image 6CREO MARK 1 - FLYMEOS - Image 7CREO MARK 1 - FLYMEOS - Image 8

Author adMember Info

rawmain


DESCRIPTION



0. Disclaimer





The usual stuff :



This package might be most suitable for experienced users but everybody is welcome to use it at his own risk.



Flashing / Rooting your phone and using software tools have risks indeed = if instructions aren't followed you can BRICK YOUR DEVICE. Therefore please read carefully all of the instructions & follow them if You choose to go on at your own risk.



If You don't understand the instructions stop & search on Google/Boards/XDA/etc. and / or ask for help.



All the mentioned software & tools belong to their respective owners/developers. Neither I nor the owners / developers are not to be held responsible if you damage or brick your device.





1. Before proceeding





*#06#

Write down your phone's IMEI.



You can find them printed on a sticker that is affixed to CREO MARK-1's box or You can retrieve them from phone, dialing *#06# code on phone dialer keypad.



You'll have indeed to apply / restore them after ROM flash according to provided instructions.



Don't proceed in any case to format / flash device without such IMEI infos.



2. ROM Flashing





Pre-Requirements :




-          Preloader USB VCOM MTK6795 Driver support




-          SP Flash Tool



If You don't have already installed them You can search on Google/XDA in order to find download/install instructions for Your specific operating system.



VCOM Driver package for Windows (from XP to 10) & SP Flash Tool (Windows & Linux-64bit) have been included in this package for your convenience.





Once ready launch SP Flash Tool with Administrative privileges, go to Download Tab and click on 'Scatter Loading' by the right.



In the window that pops up, go to the folder where You've extracted the rom You've downloaded, and select the right scatter file (MARK1 if You want to keep stock recovery or TWRP to replace it with custom one) then click Open.

1. Click Format at the top.



2. After clicking Format, a dialogue box will pop up, ensure that 'Auto Format Flash' and 'Format whole flash without Bootloader' are selected.



3. Click OK, Stop should now be red or green in color.



4. Connect the switched off phone to the PC via USB cord.


5. A progress bar should load till you get a 'Success' message (green circle with OK).


6. Disconnect the phone from PC.

7. Go back to Download Tab and ensure that formerly selected scatter file & list with ticked boxes appears in SP flash tool.



8. click Download (with an arrow above it). You'll see that Stop should now be prominent while other options should be grayed out.



9. Connect the switched off phone to the PC via USB cord.



10. A progress bar should start running. Wait till you get a Success message (green circle with OK) and do not interrupt before then.





Once You've got the 'Success Message' disconnect the phone, then power up the phone.







3. Apply / Restore IMEI





After flashing You'll have to apply / restore mobile phone IMEI (that You have written down before). In order to do so You can use MAUI META 3G v8.1520.1 .



MAUI META 3G v8.1520.1 installer has been included in this package for Your convenience. Once installed, run it with Administrative privileges (run as administrator).



1. Click on Options menu tab and select/tick Connect Smart phone into META mode .



Then click on Reconnect button. The color of circle will start changing between red and green & below You'll see the connect message.



2. Connect the switched off phone to the PC via USB cord .



The phone should boot up then get stuck at boot animation in META mode. The circle should now be yellow in color, indicating that the phone has been successfully detected .



The Get Version box will open automatically. Otherwise select it below Action menu tab .



3. Click on Get target version button.



4. Minimize Get Version box once phone details appear to confirm phone detection .  Then select IMEI Download below Action menu tab.



5. Click on Change NVRAM Database File & select BPL_GUI MDDB file provided with the ROM package.



Then on SIM_1 tab enter the first 14 digits of 1st SIM IMEI you've written down before. The digit entered in the CheckSum box will be the 15th digit of the IMEI. Once done, click Download To Flash .



6. You'll get Download IMEI to flash successfully confirmation message. Now You have to repeat last step also for 2nd SIM.



Therefore switch to SIM_2 tab & enter the first 14 digits of 2nd SIM IMEI you've written down before. The digit entered in the CheckSum box will be the 15th digit of the IMEI. Once done, click Download To Flash in order to get confirmation message also for 2nd SIM.



Once finished close the IMEI Download box.

7. Click on Disconnect button. Phone will exit from META mode and shutdown.



Then boot up the phone and dial *#06# code on phone dialer keypad in order to confirm that IMEI have been successfully written & saved.



4. After installation

Go into Settings Battery , select Low Power Mode – untick Turn Off Network and enable it.



Go into Settings Accessibility SmartTouch and enable it. Then set an action to perform Home Screen .



Reboot into TWRP recovery (*) , install SuperSU, then do Wipe Dalvik / Cache & reboot.



(*)

On unrooted devices TWRP recovery can be started only from ADB (adb reboot recovery command – USB Debug must be enabled in Settings Developer Options).



On rooted devices You can install & use QuickReboot .



Tap on SuperSU and initialize it.



Tap on App Store and search / download Google Installer.

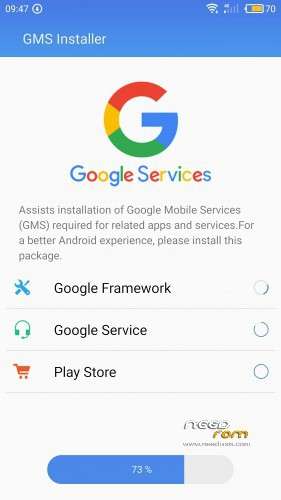

Launch GMS Installer and install Google Framework + Play Services + Play Store







5. Additional Packages



SD Pack

- SuperSU 2.78 (best choice to root device)



- QuickReboot (requires root)



- Google Camera



- Sensor Test



- MoreLocale 2 (custom languages for apps – requires root)



On unrooted devices TWRP recovery can be started only from ADB (adb reboot recovery command – USB Debug must be enabled in Settings Developer Options).



On rooted devices You can install & use QuickReboot  .



Owing to locked bootloader TWRP recovery can't be used to flash custom ROMs.





6. Credits & References



Don Alex (Creo Forum)

ROM images full dump from CREO MARK-1 device



https://forum.creosense.com/topic/1211/rom-factory-image



Additional credits :



Girija Das (Creo Forum) for infos about lack of MTK EngineerMode support on device





Sandeep Seethi (XDA)



First instructions & suggestions for MT67xx same chipset ROM portings



http://forum.xda-developers.com/k3-note/development/guide-porting-64bit-mtk-roms-cross-t3310605







megthebest (Androidiani / Needrom)

TWRP 3.0.2 custom base recovery for PPTV King7 & other MT6795 devices



http://www.androidiani.com/forum/modding-altri-terminali-mtk/522091-pptv-king-7-mt6795-3gb-ram-32gb-flash-modding.html



https://www.needrom.com/download/pptv-king7-twrp/



Additional credits :



JEMMINI (XDA) for TWRP Recovery 3.0.0.0

YUWENG (XDA) for his suggestions

AlexZap (XDA) for partinfo script

SuperR (XDA) for his powerful ROM kitchen
