DESCRIPTION

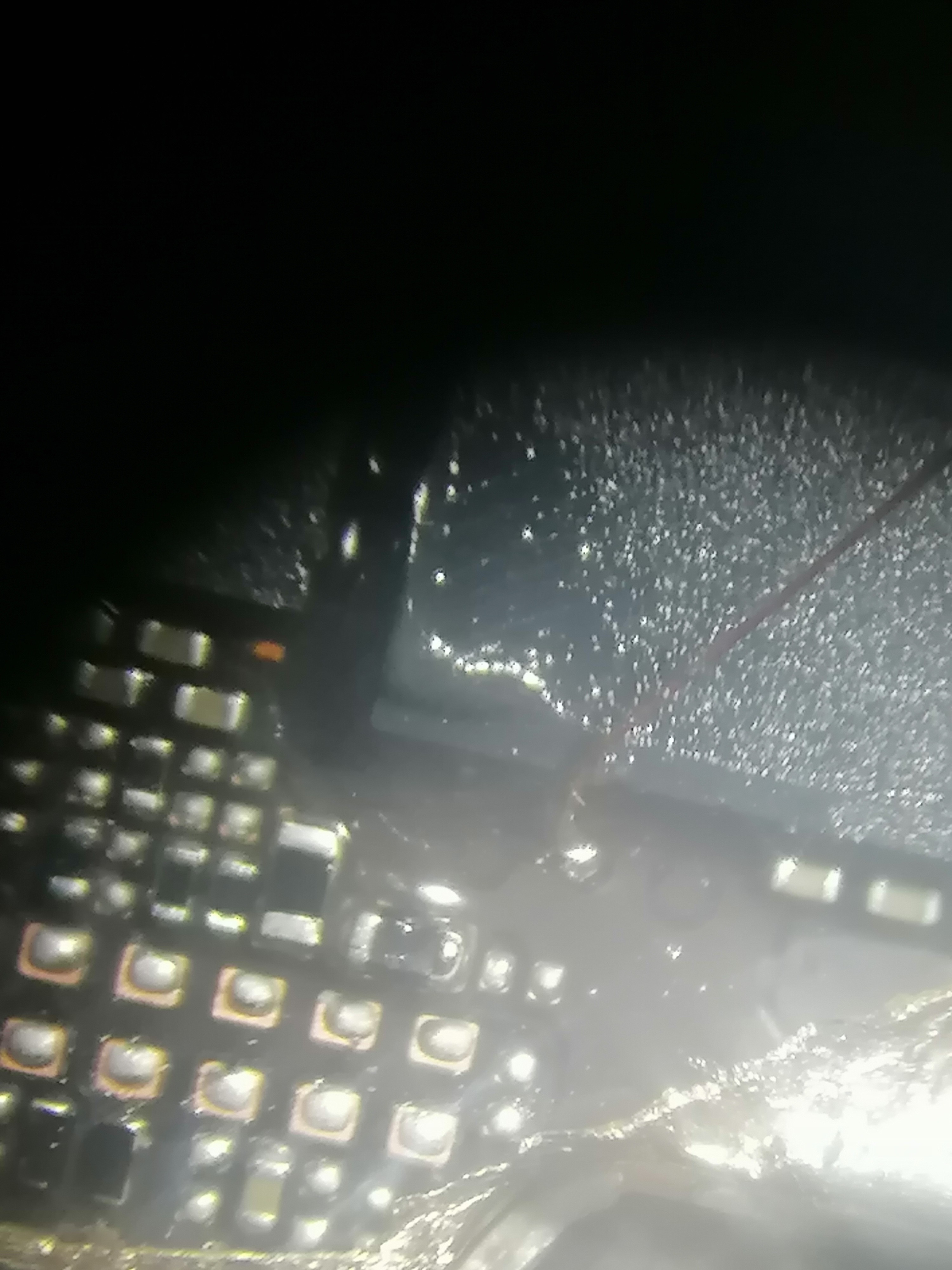

 TEST POINT CPH2239 OPPO A54 4G

T

1. Power Off the device
2. Wait 20 seconds
3. Connect USB cable to device [remember Vol+ | Vol-]
Waiting for device connection…

PTFN: MediaTek USB Port_V1632 (COM21)
MODE [0]: BOOTROM; PORT: 21
Waiting BOOT ACK…
BROM: Skip ACK verify
BROM: Init…
  Init passed
CHIP: MT6765 SBID: 0x8A00 HWVR: 0xCA00 SWVR: 0×0000 EVOL: 0×0000 HWC: 0×0766
  CODE: Cervino
  TYPE: MODERN  [RAPHAEL]
  MEID: C660DF80E359505AAB702BF19FF36401
BROM: Sec Level: 0x000000E5 Mode: SBC+SDA+EXT
  VER: 0×05 BL: 0xFE [BOOTROM]
  SOCID: A195F54E3B2C464507D16BA67F2A8A6C81107C7143011A8F0024997DD6542C4B
  SLA: Local Auth
  SLA: Starting Auth
  SLA: Continue Auth
  FF: Looking for EMI
  FF: EMI not found
  SLA: Auth Passed; SEC: 0x000000E0
AGENT: AUTO: Oppo: A54-4G
  [917c6560] C:InfinityBoxCM2MT2bootOppoA8MTK_AllInOne_DA_20200707.1010_513994.bin
Looking for suitable BootChain in DA…
Found MT6765
AGENT: MTK_DOWNLOAD_AGENT
BROM: Sending 1st DA…
  DA sent
  Transfer control to DA…
DA: AGENT started
DA: SYNC
  MODE: BROM
  EXT_RAM NOT initialized
EMMC CID: 13014E53304A394B39102694A59358DF
  VEN: Micron OEM: 334 ID: 53304A394B39 [S0J9K9] PRV: 0×10
  SNN: 647275923 [0x2694A593]
  MM/YY: 5/2021

EMI: Init [0] via Internal database
EMI: Init Ok
EMI: INFINITY PRELOADER_INFINITY_0 with 1 memory type(s)
EMI: EXT_RAM CFG Passed
DA: Boot to 2nd DA…
  2nd stage confirmed
DA: SYNC passed

Load HW info…
SRAM: 0×00070000 [ 448.00 Kb ]
DRAM: 0×100000000 [ 4.00 Gb ]

EMMC CID: 13014E53304A394B39102694A59358DF
  VEN: Micron OEM: 334 ID: 53304A394B39 [S0J9K9] PRV: 0×10
  SNN: 647275923 [0x2694A593]
  MM/YY: 5/2021
  BOOT1: 0×00400000 [ 4.00 Mb ]
  BOOT2: 0×00400000 [ 4.00 Mb ]
  RPMB: 0×01000000 [ 16.00 Mb ]
  USER: 0x1D1F000000 [ 116.48 Gb ]

CHIP: MT6765 SBID: 0x8A00 HWVR: 0xCA00 SWVR: 0×0000 EVOL: 0×0000 HWC: 0×0766
  CODE: Cervino
  TYPE: MODERN  [RAPHAEL]
  RNID: AF495483F5485A99AF08DDBF57CC08B2
  MEID: C660DF80E359505AAB702BF19FF36401

USB: HIGH-SPEED
Boot done [Raphael]

Analyze PMT…
Loaded 0×8000 bytes
PMT: PGPT [0x64] Records: 47
Select info source…
Firmware ID: MT6765
Read: preloader.bin 4.00 Mb
Read: recovery.img 98.00 Mb
Read: opporeserve1.img 8.00 Mb
Read: opporeserve2.img 128.00 Mb
ExtSparse: Compression ratio: 67%
Read: opporeserve3.img 64.00 Mb
Read: oppo_custom.img 1.00 Mb
Read: vbmeta_system.img 8.00 Mb
Read: vbmeta_vendor.img 8.00 Mb
Read: persist.img 48.00 Mb
ExtSparse: Compression ratio: 47%
Read: sec.img 2.00 Mb
Read: proinfo.img 3.00 Mb
Read: md1rom.img 100.00 Mb
Read: spmfw.img 1.00 Mb
Read: tinysys-scp.bin 1.00 Mb
Read: tinysys-scp.bin 1.00 Mb
Read: sspm.img 1.00 Mb
Read: sspm.img 1.00 Mb
Read: gz.img 16.00 Mb
Read: gz.img 16.00 Mb
Read: nvram.bin 64.00 Mb
Read: cdt_engineering.img 8.00 Mb
Read: ocdt.img 8.00 Mb
Read: special_preload.img 448.00 Mb
ExtSparse: Compression ratio: 99%
Read: my_custom.img 64.00 Mb
ExtSparse: Compression ratio: 99%
Read: lk.bin 4.00 Mb
Read: lk.bin 4.00 Mb
Read: boot.img 32.00 Mb
Read: logo.bin 8.00 Mb
Read: dtbo.img 8.00 Mb
Read: tz.img 5.00 Mb
Read: tz.img 5.00 Mb
Read: super.img 7.78 Gb
ExtSparse: Compression ratio: 16%
Read: vbmeta.img 8.00 Mb
Read: cache.img 432.00 Mb
Read: userdata.img 106.88 Gb

FW Size: 6.94 Gb
Scatter: MT6765_Android_scatter.txt
Saved: C:UsersShroffDownloadsMT6765
Verify device config…
Ok

※Please make a backup of your device before installing or updating ROM
