DESCRIPTION

STOCK ROM for ONLY SOME of this Tablets!
Origin: This is an update to Android 5.1 from ftp://smartbook.de (offline).

The Device:

Tablet 7" Smartbook SQ7 from smartbook.de
technical data: 1GB ram ; 8GB flash ; Quad Core CPU ; stock ROM from factory was Android 4.4 (now you upgrade to 5.1 , ROM from factory) ; Chip: Rockchip RK3216 ; EAN Code: 4260243433768 ; Artikel-Nummer (Articel-No.): 21229
vendor: https://web.archive.org/web/20191130002554/http://smartbook.de/produktfeatures/75/technische-daten

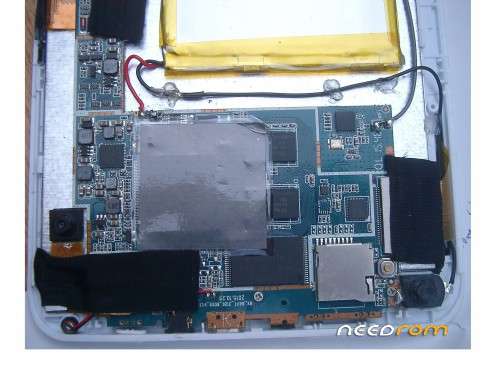

motherboard / PCB Board Label: BX_86VT_3126_8089_V1.1

The ROM:

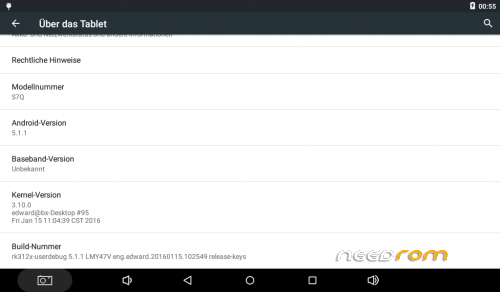

Model No.: S7Q
Android Version. 5.1.1
Kernel Version: 3.10.0  edward@bx-Desktop #95
Build No.: rk312x-userdebug 5.1.1 LMY47V eng.edward.20160115.102549 release-keys

This ROM is from ftp-server ftp://smartbook.de (offline).
This ROM is an upgrade to Android version 5.1.

Check your Serial-Number !

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!! Check the Serial!! ONLY for SOME Devices of serie model S7Q !!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
You must verify your serial-number. Otherwise this Update-File is wrong for you. (example Error: Maybe the wifi-Chip is different and not working). Please check the serial number. Your Serial Number must be in this List.

The List of Serial is in the small .zip File (20kb). The same List of Serial you also find in external links.
Filename: S7Q Serial no _ for smartbook_s7q_update_RK3126_86VEH_S7Q_5.1_ESP8089SPI_ICN8703_20160115.txt.zip

Checksum of ROM File:

The compressed, compressed ROM+Tools File:
File-Name:
smartbook_s7q_update_RK3126_86VEH_S7Q_5.1_ESP8089SPI_ICN8703_20160115.img.rar_with_tool.rar
checksum sha256:
e50b33cd67beb34f30f6d6317c4bd1f0a285c70a2aa9d631b05e3ab2b019dc4e

The parts inside the .rar File:

The ROM File:
File-Name:
update_RK3126_86VEH_S7Q_5.1_ESP8089SPI_ICN8703_20160115.img
checksum sha256:
097d25919cd3ee5d9ca1a3c9578de41f90a535925c509cdc2b345da1965b81b2
size: ~ 644,5MB

The compressed ROM File:
File-Name:
update_RK3126_86VEH_S7Q_5.1_ESP8089SPI_ICN8703_20160115.rar
checksum sha256:
d8fc838bf93db1f4c807987790b92e074d07624ac5fe9a2d30b417b00fb0a504

Install Tool:
File-Name:
RockChip_Batch_Tool_v1.8.zip
checksum sha256:
28e67a5fa7967cd06e354ab0040e65e2724efb27772589cae682ab5ddd65b28f
checksum md5:
0bf1b8067dcef315893c6677c57c1484

To Install, you need this Install-tool. Other Tools are: " RK_Android_Tool_2.3.9 " or " RockChip Batch Tool "  or  other programs.

Bug?:

Maybe there is a Bug in this ROM? My device does not fully shutdown.
What i did: I press shutdown button. See the message: "is shuting down". After a Second: black Screen.
Whats the problem: I thought the Device is now complete off. But: the battery is complete empty after a few hours. I've tested lots of times; also tested with factory-reset. My battery is not the Problem.
My personal Hardware Workaround / Fix: I added (solder) a mini switch button before the battery. I made a hole in the cover/case for this switch.
Maybe this is just my problem on my personal device. But i wanted to warn you before installing. I can't compare to before update (because i haven't used the tablet with old android version 4.4). Everthing else are ok: starting or restart the device. ( A fully discharged battery will stress the battery (= lower Battery life / cyles). ).


Good Luck

And make a Backup of your Data before!

※Please make a backup of your device before installing or updating ROM
