DESCRIPTION
ROM Fake Mi3 MT6582 – ROM Android 4.2.2
Features ROM:
ADD another ROM, Before look "Software Config Table"
Fake Mi3 MT6582 version : t8206_td_sy_64_v2.0
| Software Config Table |
SelectShow |
Software Config Table
======================================================
PROJECT NAME \t\t\t\t\t: t8206_td_sy_64
PLATFORM \t\t\t\t\t: MT6582
BRANCH \t\t\t\t\t: SUNMONTECH (W1024)
BUILD VERNO \t\t\t\t\t: ALPS.JB5.MP.V1.6
DRAM SIZE \t\t\t\t\t:
LCM \t\t\t\t\t: nt35590_dsi nt35521_dsi_vdo
TOUCH PANEL \t\t\t\t\t: ft5206_sc
BT \t\t\t\t\t: MTK_CONSYS_MT6582 = yes
FM \t\t\t\t\t: MT6627_FM = yes
WIFI \t\t\t\t\t: MT6620 = yes
GPS \t\t\t\t\t: MTK_GPS_MT6582 = yes
ALS PS \t\t\t\t\t: APDS9930 =
ACCELEROMETER \t\t\t\t\t: mma8453q_auto_lis3dh_auto_lis3de_auto
GYROSCOPE \t\t\t\t\t:
MAGNETOMETER \t\t\t\t\t: yamaha532
BAROMETER \t\t\t\t\t:
MAIN CAMERA \t\t\t\t\t: imx111_mipi_raw , ov8825_mipi_raw_2lane
SUB CAMERA \t\t\t\t\t: gc2235_raw , gc2035_yuv
FLASH LIGHT \t\t\t\t\t: constant_flashlight
LENS \t\t\t\t\t: fm50af ov8825af dummy_lens
JOGBALL \t\t\t\t\t:
OFN \t\t\t\t\t:
======================================================
RF \t\t\t\t\t: MT6166_2G_TDD_NOSP3T_CUSTOM (sunmontech82_wet_jb5_tdd128hspa_32k_26m_less_nfc27mless)
MTK_PROJECT = SUNMONTECH82_WET_JB5_TDD128HSPA
MTK_BRANCH = WR8.W1319.MD.TG.MP
MTK_BUILD_VERNO = MOLY.WR8.W1319.MD.TG.MP.V14======================================================
#define CS_PART_NUMBER[0] H9TP32A8JDACPR_KGM
#define CS_PART_NUMBER[1] KMK5U000VM_B309
#define CS_PART_NUMBER[2] KE4CN2L2HA8A2A
#define CS_PART_NUMBER[3] SD7DP28C_4G
#define CS_PART_NUMBER[4] KE4CN2L2HA8A2A_A58
======================================================
BUILD TIME : 20140306164433
|
Gapps not include – No Rooted
Language support: EN/CN
——————————————————————————————————————————————-
Update ROM Fake Mi3 MT6582 version : t8206_td_sy_26mless_v18.0
——————————————————————————————————————————————-
ROM Fake Mi3 MT6582 version : t8206_td_sy_26mless_v13.0
interface MIUI
| Software Config Table |
SelectShow |
Software Config Table
======================================================
PROJECT NAME : t8206_td_sy_26mless
PLATFORM : MT6582
BRANCH : SUNMONTECH (W1024)
BUILD VERNO : ALPS.JB5.MP.V1.6
DRAM SIZE :
LCM : nt35590_dsi nt35521_dsi_vdo
TOUCH PANEL : ft5206_sc
BT : MTK_CONSYS_MT6582 = yes
FM : MT6627_FM = yes
WIFI : MT6620 = yes
GPS : MTK_GPS_MT6582 = yes
ALS PS : APDS9930 =
ACCELEROMETER : mma8453q_auto_lis3dh_auto_lis3de_auto
GYROSCOPE :
MAGNETOMETER : yamaha532
BAROMETER :
MAIN CAMERA : imx111_mipi_raw , ov8825_mipi_raw_2lane
SUB CAMERA : gc2235_raw , gc2035_yuv
FLASH LIGHT : constant_flashlight
LENS : fm50af ov8825af dummy_lens
JOGBALL :
OFN :
======================================================
RF : MT6166_2G_TDD_NOSP3T_CUSTOM (sunmontech82_wet_jb5_tdd128hspa_32k_26m_less_nfc27mless)
MTK_PROJECT = SUNMONTECH82_WET_JB5_TDD128HSPA
MTK_BRANCH = WR8.W1319.MD.TG.MP
MTK_BUILD_VERNO = MOLY.WR8.W1319.MD.TG.MP.V14======================================================
#define CS_PART_NUMBER[0] H9TP32A8JDACPR_KGM
#define CS_PART_NUMBER[1] KMK5U000VM_B309
#define CS_PART_NUMBER[2] KE4CN2L2HA8A2A
#define CS_PART_NUMBER[3] SD7DP28C_4G
#define CS_PART_NUMBER[4] KE4CN2L2HA8A2A_A58
======================================================
BUILD TIME : 20140306172608
|
Gapps not include – No Rooted
Language support: EN/CN
ROM Install :
- Unpack FlashTools, and Click on Flash_tool.exe
- Select a the MT6582_Android_scatter_emmc.txt in ROM
- Wait file to be added into Flash Tool
- choose Option->USB Model,click USB Model
–> Choose Option->DA DownLoad All->Speed->High Speed, click High Speed
- Turn off your phone, remove the battery.
- "Press F9 (hit Download button)" OR " if upgrade ROM Firmware->Upgrade "
- and connect your phone into the computer via USB data cable.
- The process will start and a red progress bar will appear after color purple, yellow.
- And green circles display
- Finish !
- You can now safely disconnect your phone and turn it on.
※Please make a backup of your device before installing or updating ROM
Member Info
Hi,
Thanks for this rom, had been looking for a while. But there is only one problem, phone cannot detect my SIM card, any help ?
Best Regards
can somebody help me i can not flash the rom using spflash it not detect my phone.. please help
please hepl me rom ..:( tk's all friend
Hello Xuan Chien
Did you find the ROM for your phone?

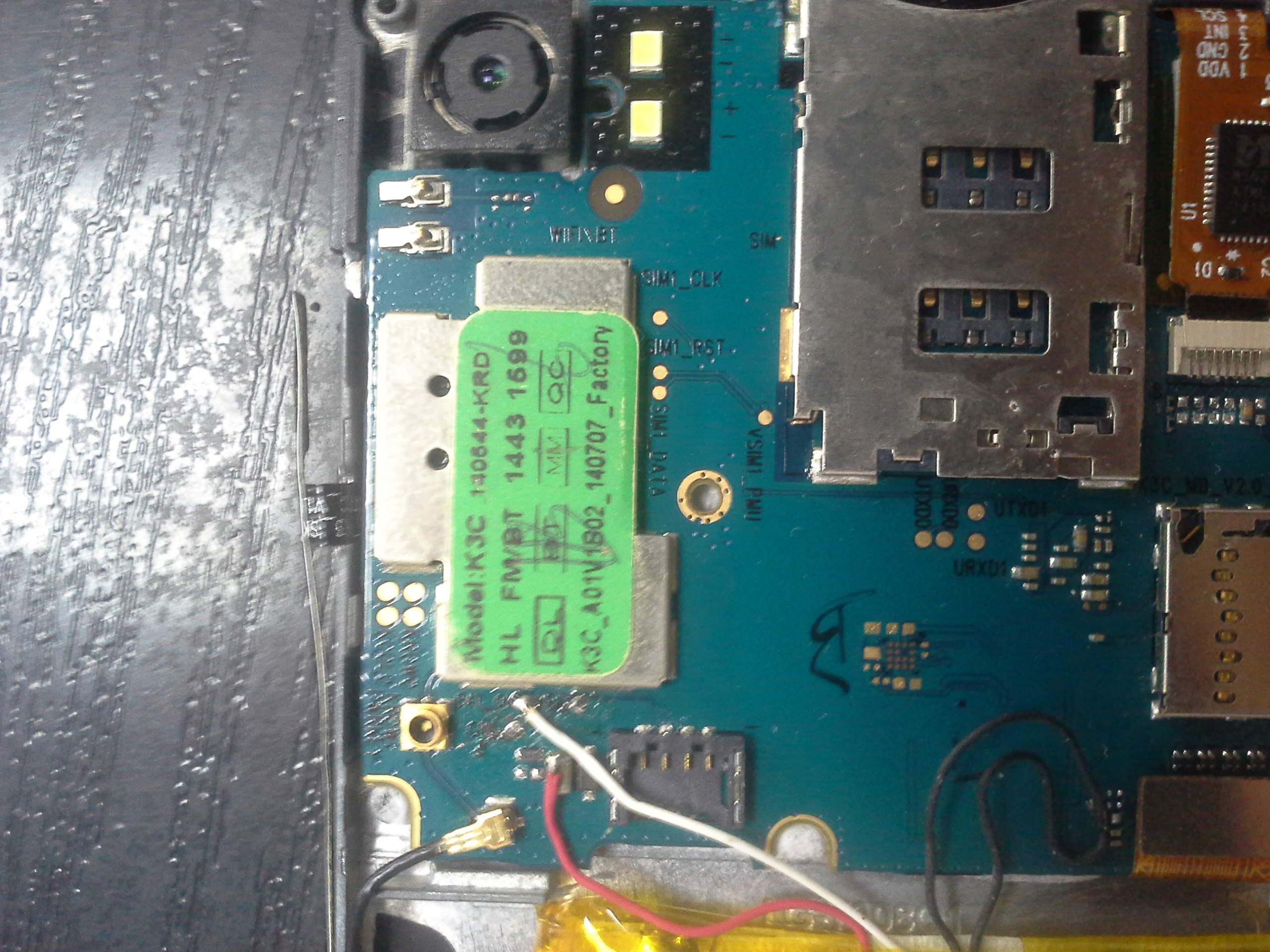

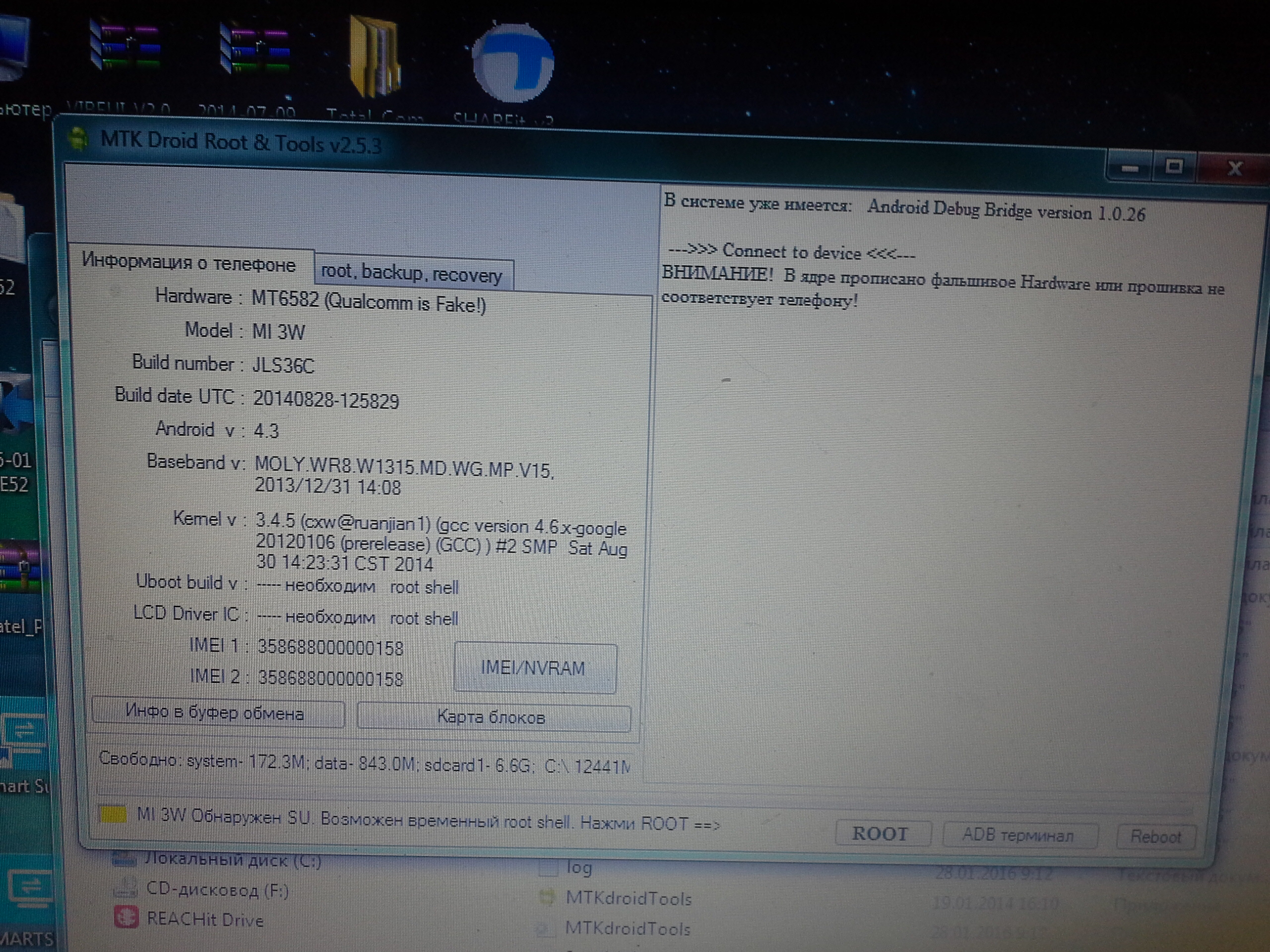

Help me find the firmware or build on my phone. It was brought to the reason that after flashing, stopped working touch screen MTK droid tool shown here is what is Mi3w qualcom is Fake
I have not done image immediately flashed image https://www.needrom.com/downlo.....ad/alps-mi3w/ now he does not turn the computer sees as an unknown device
thanks a ton dude, it's really usefull for mi3 fake of my friends, his mi3 fake got bootloop.
