- Title: HDC Galaxy Note 3 Max N9006
- Listed: January, 2014
- Last modified: 01/11/2014 5:43 pm
- Version: ROM Android 4.3
You must be logged for ROM download.
68580 total views, 3 today
8 Total favorites
Member Info
DESCRIPTION
Original standard (clean) ROM 4.3 for HDC Galaxy Note 3 MAX N9006 with real Infrared, Single SIM version.
1280*720 pixel – 1GB RAM, 8GB ROM – MTK6589 Quad Core 1.2GHz
I have only tested this ROM on MT6589 – Model: MAX N9006
Don't flash on wrong phone model! it may brick your phone!
ALWAYS make a backup of your original ROM first!
Read here how to http://forum.xda-developers.com/showthread.php?t=2730031

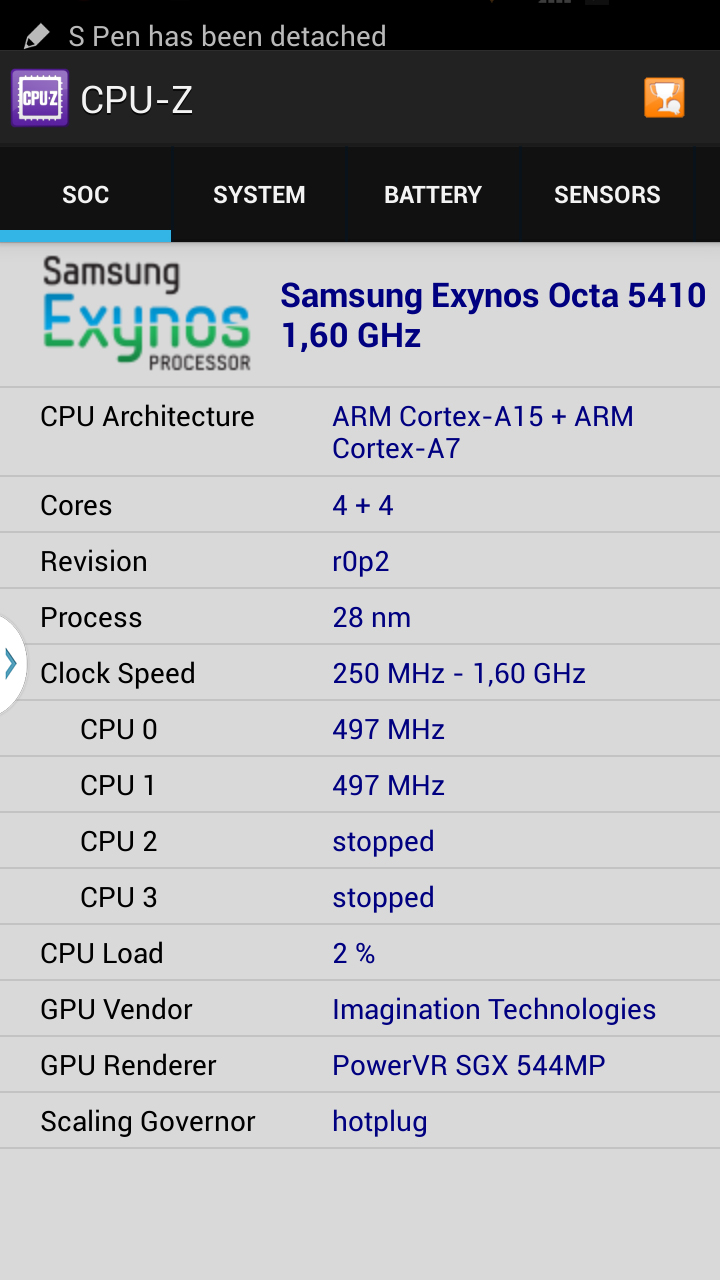

Hardware : MT6589 (UNIVERSAL5410(exynos5) is Fake!)
Model : SM-N9006
Build number : JSS15J.N9006ZCUBMJ3
Android v : 4.3
Baseband v: MOLY.WR8.W1248.MD.WG.MP.V7.P11
Kernel v : 3.4.5 (bz@ubuntu) (gcc version 4.6.x-google 20120106 (prerelease) (GCC) ) #1
LCD Driver IC : 1-otm1283a_dsi_lcm_drv
This version has no real multi-window. But has the sidebar.
But better fake for Samsung ID, KIES AIR App will work with this ROM.
ROM is untouched and clean.
- Has Samsung bootlogo/shutdown and animation with sound.
- Infrared Remote Control app is included
- Original Kies Air app together with a PC works with this ROM
- Not Rooted (but can easily be rooted with MTKDroidTools)
- Language support : Multilang
The ROM is used in these videos here (but the videos may show more apps that are not included in the ROM) The ROM is clean and default when you install it.
Check a lot of Note 3 N9006 videos here: https://www.youtube.com/playlist?list=PL4ZcKmLvMO7q5MXRAm9L8MNbObP40JXje
Install ROM:
Read here also: http://forum.xda-developers.com/showthread.php?t=2730031
Never needlessly Download preloader and DSP_BL blocks! It is always dangerous! On some models of phones you will have a brick even if you download these blocks read from phone which you own! Always remove from them marks in SPFT! ALWAYS have a working backup of your original ROM before you flash a new unknown ROM.
- Unpack FlashTools, and Click on Flash_tool.exe
- Select a the MT6589_Android_scatter_emmc.txt in ROM
- Wait file to be added into Flash Tool
- choose Option->USB Model,click USB Model
–> Choose Option->DA DownLoad All->Speed->High Speed, click High Speed
- Turn off your phone, remove the battery.
- "Press F9 (hit Download button)" OR " if upgrade ROM Firmware->Upgrade "
- and connect your phone into the computer via USB data cable.
- The process will start and a red progress bar will appear after color purple, yellow.
- And green circles display
- Finish !
- You can now safely disconnect your phone and turn it on.
To discuss ROM, tips & tricks for the model please go here
http://forum.xda-developers.com/showthread.php?t=2554192
※Please make a backup of your device before installing or updating ROM
my rom have lcd ic 1-otm1283a_boe_lcm_drv, and now my phone brick i need stock rom, pliss help me
which model do you have?
Error Downloaded in flash tools sir
helppp need fix or need new rom i donate for you
PM me
I bricked my note 3 clone sm-n9006 MT6572. Need help
I try to update note 3 clone rom, but something gone wrong. Now i try several roms on needrom.com. I install rom and now i hear startup sound and see screen stripes. I think recovery mode works, but i dont see anything
Maybe someone have the same phone and help me
Phone info: android version 4.4 baseband version N9006ZCUBMI3 kernel version 3.4.5-526212 se.infra@sei-44 #1 wed apr 24 20:59:59 KST 2013 built number JSS15J.N9006ZCUBMI5 model: sm-n9006 FCC ID : A3LSMN9006 SSN:-N9006GSMH RATED 3.8 V 1300 mA I open my note 3 clone and look proccesor info: Mediatek arm mt6572a 1346-wahhah ctt1x209 mADE IN KOREA BY SASMSUNG
good rom thank you
Nice rom,thx
i hv mt6589 N9006 1 GB RAM and 4 GB ROM i m totally stuck i had bricked my fon it doesnt open and not to show anything … plz help ….
Help me please,
my device has these characteristics:
when I try to flash this rom, I have this message:
BROM ERRORE: S_FT_ENABLE_DRAM_FAIL (4032)
[EMI] Enable DRAM failed!
[HINT] Please check your load matches to your target which is to be downloaded
It 'rom that does not fit my device?
Hi, i load this rom my phone
https://www.needrom.com/downlo.....te-3-max-n9006/
but touch and back key problem, i turn back my backup rom but have same problem , touch back button dosent work, i look on internet and i have this solituon..
[quote]tpd_calmat: 962,0,0,0,1600,0,0,0
tpd_def_calmat: 962,0,0,0,1600,0,0,0
tpd_em_asamp: 1
tpd_em_auto_time_interval 10
tpd_em_debounce_time: 0
tpd_em_debounce_time0: 1
tpd_em_debounce_time1: 4
tpd_em_pressure_threshold: 0
tpd_em_sample_cnt 16
tpd_em_spl_num: 1
tpd_firmware_version: 0.0
tpd_load_status: 1
tpd_mode: 0
tpd_mode_axis: 0
tpd_mode_keypad_tolerance 144
tpd_mode_max: 854
tpd_mode_min: 427
tpd_type_cap: 1
tpd_magnify_x 10
tpd_magnify_y 10 [/quote]
but i cant change this parameters, i set read write access but when restart turned old parameters. My phone resulotion 1280×720, please help me…
Hi too all, i confirm the touch and back key problem.
Any solutions ??
Hardware : MT6589 (UNIVERSAL5410(exynos5) is Fake!)
Model : SM-N900
Build number : JSS15J.N900ZCUBMJ3
Build date UTC : 20140829-075405
Android v : 4.3
Baseband v: MOLY.WR8.W1248.MD.WG.MP.V7.P11, 2013/05/28 20:28
Kernel v : 3.4.5 (bz@ubuntu) (gcc version 4.6.x-google 20120106 (prerelease) (GCC) ) #1 SMP Fri Aug 29 15:51:19 CST 2014
Uboot build v : —–
LCD Driver IC : 1-otm1283a_dsi_boe_lcm_drv
I have this prblem BROM ERROR S_FT_ENABLE_DRAM_FAIL ( 4032 ) after i flashed my Note3 N900 (N9006 ) MTK6589 WITH YOUR ROM.
First After flash with ROM from supplier/seller i have the problem of back button and touch screen not calibratet, BUT KNOW my phone is dead / dark screen but is connected on COM PORT with SP TOOL.
I try volume down when connected with PC, combinations of volume down+camera and after thet connected, and all possible combination for going to boot but nothing
I have always have the same error. Also i try to flashing with right ROM from seller but nothing. I also make backup firs but when i select sccater file from back up on mtkdroid after that SP FLASH crashed and close off ( VERSION 3.1808 ) but with last version 5.1436 with back up file give BROM_ERROR : S_DL_GET_DRAM_SETTING_FAIL (5054).
Pls could you help me ???
My mail is: 1st.office.manager@gmail.com
Thx in advance
Hardware : MT6589 (UNIVERSAL5410(exynos5) is Fake!)
Model : SM-N900
Build number : JSS15J.N900ZCUBMJ3
Build date UTC : 20140829-075405
Android v : 4.3
Baseband v: MOLY.WR8.W1248.MD.WG.MP.V7.P11, 2013/05/28 20:28
Kernel v : 3.4.5 (bz@ubuntu) (gcc version 4.6.x-google 20120106 (prerelease) (GCC) ) #1 SMP Fri Aug 29 15:51:19 CST 2014
Uboot build v : —–
LCD Driver IC : 1-otm1283a_dsi_boe_lcm_drv
