ZOPO C2 Stock Rom – 1 Giga SYSTEM

Author adMember Info



I have ZOPO C2 phone.
I extended my phone's SYSTEM partition to 1 Gigabyte and DATA partition to 5 Gigabyte – Done easy thanks to Vell's tutorial. (Vell – thank you!).
(See Vell MIUI7 Global Stable ROM - https://www.needrom.com/download/miui7-global-stable/

Then I tried several MIUI 7 and 8 ROMs.
One time the instalation failed and my phone BRICKED.
The phone was hard bricked – I can't access recovery and ADB and FASTBOOT didn't recognize it.

I downloaded MTK SmartPhone Flash Tool (v5.1524.00.000) for WINDOWS PC, and ZP980_c2_zopomobileshop_20130818 Stock ROM.
The Flash Tool failed to flash because
The phone has EXTENDED system and data partitions and the stock flash tool Scatter-Loading File points to the STOCK system  and data partitons.

I used Vell's tutorial to fix the flash tool Scatter-Loading File.
Then succesfuly flashed stock ROM for my ZOPO C2 phone.

I present you ZOPO C2 / 980 16Gb Stock ROM for EXTENDED system and data partitons.
The rar file contains:

The stock ROM folder - missing 3 files:

The Scatter file



The Smart Phone Flash Tool (v5.1524.00.000) folder.

MTK USB Driver folder.

5 folders coresponding the size of extended partitons.
Each folder contains the missing 3 files – EBR1, EBR2 and The Scatter file:


System-Stock Data-Stock folder

System 1 Gigabyte – Data 1.5 Gigabyte

System 1 Gigabyte – Data 2.5 Gigabyte

System 1 Gigabyte – Data 5 Gigabyte

System 1 Gigabyte – Data 10 Gigabyte


Download the rar file and extract it.

Locate the FlashTool MTK Driver folder and install the USB driver (run install_driver.exe).

Locate the folder with the right size of the system and the date paritions.

Copy the 3 files EBR1, EBR2, Scatter file from this folder to the ROM folder.
now you have ROM with all the files, including the missing, the correct 3 files.

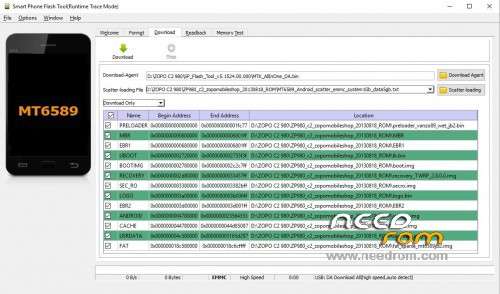

Locate the flash tool folder and execute the flash tool (run flash_tool.exe).

Inside the flash tool press on SCATTER-LOADING button, locate the ROM folder and load the scatter file.

Inside the flash tool locate the RECOVERY line – line no. 6. and select the recovery type:


RECOVERY_Stock.img file for stock recovery.

RECOVERY_TWRP_2.8.0.0.img file for TWRP recovery. (recomended – default).

RECOVERY_CWM_6.0.4.4.img file for CWM recovery.

Press the Download (green arrow) button.

Only then take the battery off the phone and connect it, without the battery, to USB cable.

The flash tool shuld recognize the phone and start flashing.

Flashing takes about 2 minutes to finish.

Disconnect the phone, return the battery and turn it on.

Hope this ROM will help you in case of bricked phone.


※Please make a backup of your device before installing or updating ROM

Donate with PayPal to liorc

7 Responses to“ZOPO C2 Stock Rom – 1 Giga SYSTEM”

  1. 08/12/2016



  2. 08/12/2016


    system 640mb changing to 591mb-__-
    i need 1gb,how to fix that?

  3. 08/20/2014

    Viet Nam

    Thank you!

  4. capron



    Perfetto mi hai permesso di recuperare il mio vecchio C2, Grazie Grazie

  5. 12/26/2018

    United States

    Hi, unfortunately I bricked my phone last night. I had kitkat 1.0.7 installed and it was running fine, but had constantly problems with data space, while installations. So I decided to try to enlarge the data area. I used your method with the SP Flash tool to install the stock system with the extended system and data partitions. I used SP smart flash tool 3.1312. Somhow I used the firmware upgrade button and not the download. It did something and at the end showed me the green sign, but the phone is dead now. I cannot swith on, the screen stays black, whatever I do. I tried to reflash the phone with the stock ROM. It is recognized by SP flash tool and if I push the download button and connect the phone, it seems to start something (at least a red progress bar is shown) and it stops without an error message. What can I do? Is there any hope to save the phone? Thank you in advance!

  6. 12/26/2018

    United States

    Hi, good news! I figured out, how to save the phone! I used linux and a much newer (5.1724) version of SP flash tool. But I think the big step was to choose in the flasher not just download, but format+download. Now the phone is working and has 2,5 GB for data. Unfortunately as I started an installation for a custom ROM, it tells me, I only have 591 Mbyte for system. So it even reduced from the previous 640 Mbyte. What could be the reason?
