ECOO E04 | [Official] 02/12/2015 on Needrom

Title: ECOO E04
Listed: January, 2015
Last modified: 02/12/2015 2:09 am
Version: ROM Android 4.4.4

You must be logged for ROM download.

Overall Rating : ★★★★★ 15

36961 total views, 6 today

1 Total favorites

OFFICIAL

Author ad Member Info

Listed by: SoCr@Te
Member Since: 05/15/0470

DESCRIPTION

ROM Mobile ECOO E04 - ROM Android 4.4.4

ONLY MT6752 + 2G Ram

Update Official ROM ECOO E04 version : 1478ZF.C63D_ECOO.A1.150211.LWT_KK.FHD.WB128_FB13720.EN.MV1616 – KTU84P - V1_CSFB

—————————————————————————————————————————————————————————————————

Update Official ROM ECOO E04 version : 1478ZF.C63D_ECOO.A1.150204.LWT_KK.FHD.WB128_FB13720.EN.MV1616 – KTU84P - V1_CSFB

Changelog	Select Show
Version number: 1478ZF.C63D_ECOO.A1.150204.LWT_KK.FHD.WB128_FB13720.EN.MV1616 Modifications: 1. BUG # 2545 :: [camera] [post OV13850] when the camera is connected to the rear without burst tone. 2. BUG # 2605 => Yang Wanqian [Locker] is set too fingerprint to unlock, you can not set up Face Unlock problems 3. Close the debug parameter fingerprint black machine 4. BUG # 2661 :: [BLUBOO] bad fingerprint acquisition, collection efforts to tap always failed, efforts focused on always home key role 5. BUG # 2605 :: [Locker] is set too fingerprint to unlock, you can not set up Face Unlock problems 6. BUG # 2539 :: [camera] [Rear OV13850] rear camera viewfinder interface into slow shoot green screen video display screen, after freeze prompted Gallery error. 7. BUG # 2681 :: [EC00] [fingerprint Unlock] fingerprinting degree bad 8. BUG # 2678 :: [EC00] [single partition] there is a preferred installation location options without words 9. Set up a fingerprint to unlock the phone after the restart, bright screen lock mode standby standby interface, modify the interface for fingerprint; 10. BUG # 2504 :: [MMS] receive MMS pictures, click on the top right corner to open the Bluetooth printing, pop Bluetooth stops running 11. resolve gsensor (BMA222E) calibration problem with common problems --- 12. mmi_test solve common problems of the current display allowed --- 13. BUG # 2663 :: [BLUBOO] under the Chinese Traditional language, fingerprint to unlock a lot of displays in English 14. Delete Supersu.APK 15. Close the battery curve, solve the power consumption is not normal --- Chow verification 16. Ann Bunny test out the CPU 6732, corrected to 6752; 17. BUG # 2551 :: [CAMERA] front camera is not shooting, normal tips 18. taken before and after the update and photo ov13850_mipi_raw ov5670_mipi_raw driven customer's final confirmation ok

Changelog

Select Show

Version number: 1478ZF.C63D_ECOO.A1.150204.LWT_KK.FHD.WB128_FB13720.EN.MV1616
Modifications:
1. BUG # 2545 :: [camera] [post OV13850] when the camera is connected to the rear without burst tone.
2. BUG # 2605 => Yang Wanqian [Locker] is set too fingerprint to unlock, you can not set up Face Unlock problems
3. Close the debug parameter fingerprint black machine
4. BUG # 2661 :: [BLUBOO] bad fingerprint acquisition, collection efforts to tap always failed, efforts
focused on always home key role
5. BUG # 2605 :: [Locker] is set too fingerprint to unlock, you can not set up Face Unlock problems
6. BUG # 2539 :: [camera] [Rear OV13850] rear camera viewfinder interface into slow shoot green screen video
display screen, after freeze prompted Gallery error.
7. BUG # 2681 :: [EC00] [fingerprint Unlock] fingerprinting degree bad
8. BUG # 2678 :: [EC00] [single partition] there is a preferred installation location options without words
9. Set up a fingerprint to unlock the phone after the restart, bright screen lock mode standby standby interface,
modify the interface for fingerprint;
10. BUG # 2504 :: [MMS] receive MMS pictures, click on the top right corner to open the Bluetooth printing,
pop Bluetooth stops running
11. resolve gsensor (BMA222E) calibration problem with common problems ---
12. mmi_test solve common problems of the current display allowed ---
13. BUG # 2663 :: [BLUBOO] under the Chinese Traditional language, fingerprint to unlock a lot of displays in English
14. Delete Supersu.APK
15. Close the battery curve, solve the power consumption is not normal --- Chow verification
16. Ann Bunny test out the CPU 6732, corrected to 6752;
17. BUG # 2551 :: [CAMERA] front camera is not shooting, normal tips
18. taken before and after the update and photo ov13850_mipi_raw ov5670_mipi_raw driven customer's final confirmation ok

—————————————————————————————————————————————————————————————————

Official ROM ECOO E04 version : 1478ZF.C63D_ECOO.A1.150128.LWT_KK.FHD.WB128_FB13720.EN.MV1616 – KTU84P - V1_CSFB

Gapps include – No Rooted

Language support : Multilang

Install ROM:

- Unpack FlashTools, and Click on Flash_tool.exe
- Select a the MT6752_Android_scatter.txt in ROM
- Wait file to be added into Flash Tool
- choose Option->USB Model,click USB Model
–> Choose Option->DA DownLoad All->Speed->High Speed, click High Speed
- Turn off your phone, remove the battery.

- "Press F9 (hit Download button)" OR " if upgrade ROM Firmware->Upgrade "
- and connect your phone into the computer via USB data cable.
- The process will start and a red progress bar will appear after color purple, yellow.
- And green circles display
- Finish !

- You can now safely disconnect your phone and turn it on.

※Please make a backup of your device before installing or updating ROM

Responses to “ECOO E04”

03/15/2015

adrian1v2000 on 03/20/2015 @ 7:43 am

I have tried to update the rom to version ECOO E04 – Update 02/11/2015…( right now i'm on rom ECOO E04 – Update 02/04/2015)…but for some reasons the , after launching the flastool and entering the scatter file, press the download button, but nothing is happenning…the rom wont start at all…i have tried without the battert and also with the battery…same thing nothing is happening.

can someone guide me with the update rom proces? the one above does not seems to work for me.

Log in to reply.
- 03/01/2015

  wazze on 03/20/2015 @ 9:07 am

  Mediatek USB drivers are not installed correctly.You can download them here:

  hxxp://www.mediafire.com/download/wbqd48jwaud8md9/MTK-Driver-Win7.rar

  Since are not digitally signed you might need to disable the signature verification in windows to install unsigned drivers.
01/10/2015

vikman on 03/20/2015 @ 9:18 am

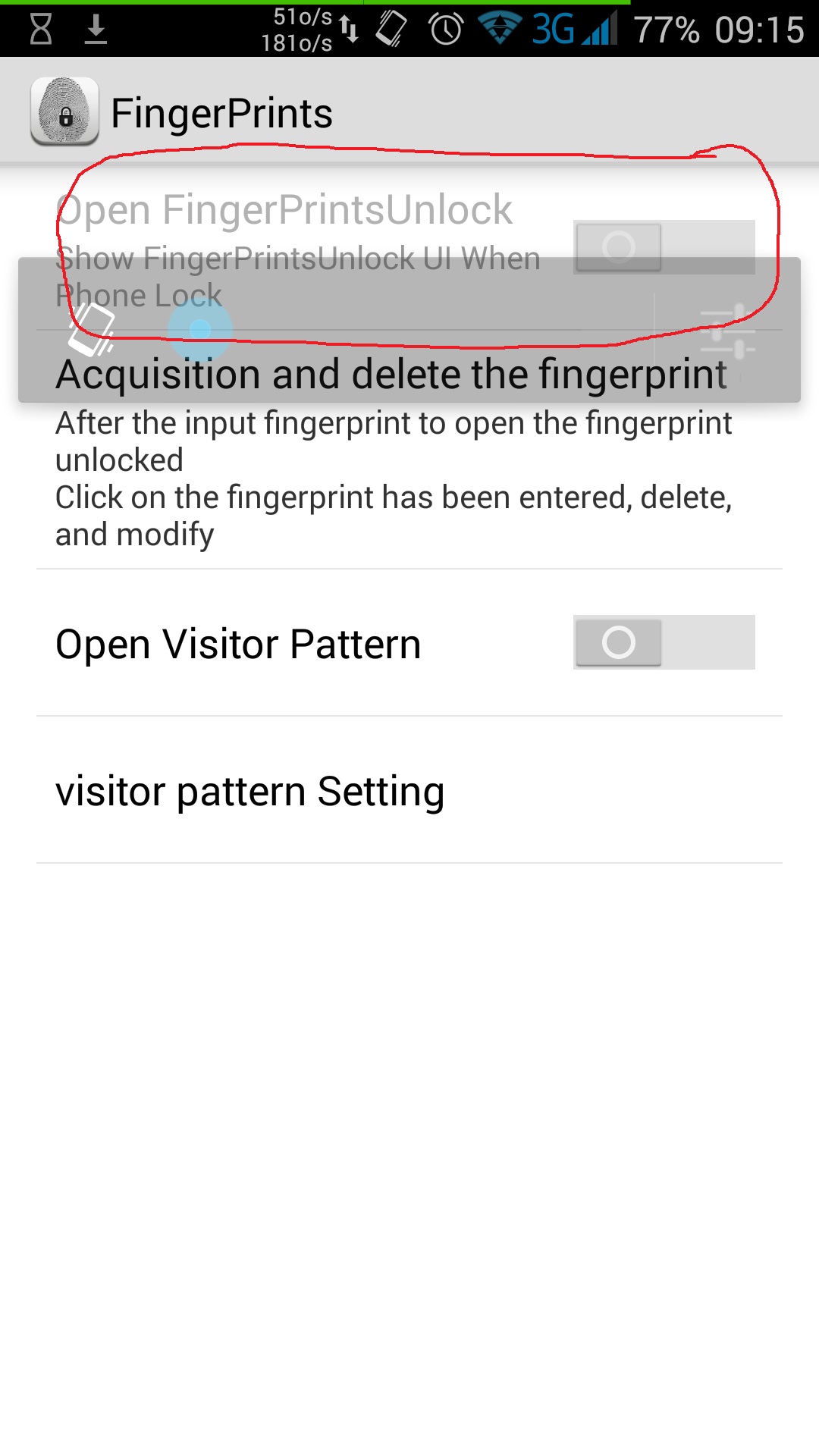

hi all , i can't activate the finguerprint , the button stay grayed.

does anybody have the same issues ? and how resolved it .
Log in to reply.
- 03/15/2015

  adrian1v2000 on 03/21/2015 @ 9:22 am

  @vikman…firstyou have to set the finger in Acquisition and delete fingerprin menu…and after that the open fingerprinst menu will become active
03/15/2015

adrian1v2000 on 03/20/2015 @ 9:33 am

@Wazze……many thanks…i thought it may be a driver related problem.but i did not had the link to the drivers.

now i have read on an russian forum that we can instal the rom from the version of 3 gb ram of ecoo 04.but without the preloader cheched….what do you think? noraly it should work since the only difference is the 1 extra gb.

here is the link to the 3 gb version:

http://yun.baidu.com/wap/link?.....ird=0

Log in to reply.
- 03/15/2015

  adrian1v2000 on 03/21/2015 @ 8:13 am

  never mind…i have tried myself…it is working like a charm….just dont check the preloader when flashing the rom
03/20/2015

Usmanzer on 03/20/2015 @ 4:18 pm

hello i'm just finish insert this rom with sp flash tool but my ecoo aurora is very slow to restart why ? it's locked to the ecoo logo at the beginning when you start the device is that normal ?

Log in to reply.
01/10/2015

vikman on 03/21/2015 @ 4:45 pm

@adrian1v2000 , i know that but the scan not detect my finger when i swip ……..

Log in to reply.
- 03/15/2015

  adrian1v2000 on 03/21/2015 @ 5:33 pm

  i don't know…mine is work.ing fine…. try another rom..the one from 3 gb version runs fine…just don't check the preloader
03/15/2015

adrian1v2000 on 03/23/2015 @ 1:28 pm

ecoo 04 running android 5.0

https://www.youtube.com/watch?.....v=e9oLwX8nziM

Log in to reply.
- 06/26/2013

  Danacy on 03/25/2015 @ 9:20 am

  Andrian. Are you saying that the 3GB Lillipop ROM is working on the 2GB as well?

  Does the ROM work? No bugs found yet?
- 02/17/2015

  megadisc on 03/25/2015 @ 3:24 pm

  does your phone have this issue ???

  GPU tests is Zero ??
06/26/2013

Danacy on 03/25/2015 @ 9:31 am

By the way..on the official Ecoo.hk website we can only download the firmware: 2015_02_10 for the2GB. Here on Needrom.com there is the 02_11.

What's up with that?

Log in to reply.
- 03/15/2015

  adrian1v2000 on 03/25/2015 @ 10:39 am

  @Danacy

  1)haven't tried to install lolipop to the 2gb phone yet…

  2)there r most prabably one and the same version…but the dates r slighty different.
02/17/2015

megadisc on 03/25/2015 @ 3:22 pm

phone keeps restarting …damn pissed …

need to send back for warrranty

all in less than 30days …

even antutu tests are cant finished…

Log in to reply.
- 03/15/2015

  adrian1v2000 on 03/25/2015 @ 3:50 pm

  if flashing another rom won't solve the problem ….then the phone is toasted
06/26/2013

Danacy on 03/25/2015 @ 3:23 pm

Adrian,

Thank you for your reply. Thought I read that you tried out the Lollipop on the 2GB phone. My bad.

Pretty happy Ecoo.hk finally has a place where they post their firmware. Very good

Log in to reply.
02/17/2015

megadisc on 03/27/2015 @ 12:47 pm

is your waze woring fine ???/ my maps full of bubbles ???

Log in to reply.
