K1 Turbo 4.4 Update

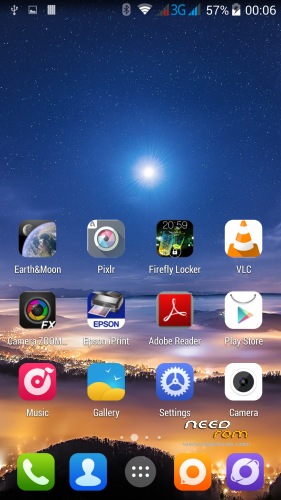

K1 Turbo 4.4 Update - Image 1

Author adMember Info



Taken from www.mykingzone.de . I take no responsiblity for any damage caused by this ROM

Offical 4.4 update from Kingzone … Finally it has arrived …

The following is translate from german to english

The file KK442-update-for-King Zone K1 Turbo.rar contains the following folders.

Driver: Should you come during the flash process prompts to install drivers, you can find it here
Flash Tool: With this program, the King Zone K1 Turbo is flashed
ROM: In this folder, the King zone update is stored. Please enptackt the archive contained therein 0502L049A_E19_K168AB125MXXE4 (K1_TURBO_B42) _EC31_IND_FULL.zip

!!!! Attention please secures your data before you reflashing the K1 Turbo. For any damage to the unit due to improper handling
arise, we can not take responsibility !!!

Manual Update Kitkat on King Zone K1 Turbo

1. Start Flashtool.exe from the subfolder flash tool
2. Normally, an already loaded in the MTK_AllInOne_DA.bin Download Agent. If this is not the case, please navigate to the file in SP_Flash_Tool_v5.1352.01.
3. Download the file MT6592_Android_scatter.txt Scattering from the unzipped folder ROM
4. Please choose in the "drop down menu", select "Firmware Upgrade".
5. Press Download
6. Connect the phone without battery via USB
7. Insert the battery
8. Now the Flash tool should have detected the device, red bar with 100% DA and download the flash process should start
9. The flash process has successfully completed and when the green checkmark appears.

Should you have problems with the flash process, so I can you the Declaration @ G-gffd put your heart. Here the driver installation and another driver is available.

1. all Mediatek (and others who are using cell phones & Android combined) delete USBDeview
2. open the Device Manager next to it
3. Driver from here: docs.google.com/file/d/0B1x1BQ…1VlcDk0TnJ0VEk/edit?pli=1 download & extract
4. if the "preloader" appears, right click on it, "Update Driver Software". To the extracted driver folder navigate to the folder of your Betriebsytems. Next, now the appropriate driver for the preloader should be installed. @ Android Figurines de: for me it did not work with the driver in your .rar file, there was no preloader driver gefunde. When the driver specified by me it worked without problems for me. Whether missing the correct driver for you, I can not say clearly is only in "your driver" and my K1 preloader a different hardware ID is available, and therefore the Windows driver manager the driver is not accepted.
5. Now the Mediatek Preloader USB Vcom must be visible in the device manager! Otherwise it does not work!
6. Flash tool with andmin right starten.So must look like.

see Appendix

7. Select Firmware upgrade (at least in the second trial when the first error aborts with download with a PMT. Depends somehow with the partition table together, how exactly n)
8. Battery from the K1, click Download – Append -> bar at the bottom is red, battery clean, wait until the green tick comes.
9. Voila, you have KitKat on the K1

The unit can now be restarted. Please give the device a little time after it was re-flashed are a few things in the background
carried out. It may also drive again to restart.

If the device after restarting find no wireless network, it may be that the IMEI entry has been deleted. If that is so, no problem, here I'll show you
how you can fix that.

The IMEI number of the two SIM slots can be found on a sticker behind the battery. So please can extract the battery and you quoted the two
IMEI numbers.

Instructions restore IMEI numbers on King Zone K1 turbo after reflash to KK

1. Write down the IMEI number
2. Please give the dial pad of the phone following code * # * # 3646633 # * # * Your enters the so-called. "Engineer Mode"
3. Please wipe replaced by the item "Connectivity"
4. Selects please "CDS Information"
5. In the next menu, please select the "radio information"
6. There appear two entries with "Phone 1" and "Phone 2". It involves the SIM slots 1 and 2
7. Selects the appropriate SIM slot, in my case now "Phone 1" means the SIM slot 1
8. In the upper part of the window you now see the AT + entry, please delete this
9. Give now please ECHR AT + = a 1.7 "IMEI SIM Slot1". It is important that there is a space between the AT and the + sign. All other entries please ihne space. Take care to use the double quotes.
10. Now click on "Send a command"
11. The IMEI number has been set, please start the new K1 Turbo

Do you want to put the IMEI for the SlM slot 2, please fürht the points 1-8 as above described and made changes the input point 9 as follows.

AT + ECtHR = 1.10 "IMEI SIM Slot2"




Please post comments / screenshots in english to help others





※Please make a backup of your device before installing or updating ROM

Donate with PayPal to funkstardelux

87 Responses to“K1 Turbo 4.4 Update”

  1. 04/19/2014


    how to Root kingzone kitkat??

  2. 01/03/2015


    the ROM here in the official facebook page


  3. funkstardelux


    United Kingdom

    Thanks for posting the link. If there are no instructions just follow the ones on here.

  4. 01/21/2013


    Hi, I have a win 8.1 PC and cannot install the drivers they provided, the device keeps connecting then disconnecting, really strange never had this before!

  5. 01/21/2013


    Yep I've downloaded the drivers and restarted Win 8.1 in no driver verification mode, the device connects, I see the preloader device driver in device manager for a second or two then it just drops the connection! I've tried 2 or 3 other usb cables, different ports, nothing works. I'm completly baffled, never had this problem before! How did you install the drivers, wait until the preloader driver appears in Device manager then update it with the downloaded drivers? Which directory are you taking the driver from in the download?


  6. funkstardelux


    United Kingdom

    I have to say i was using windows 7 but had the same problems. I waited for the preloader to appear in device manager then went to update driver and pointed it to MTKUsbAll_0.8\MT65xx Preloader\Win7 .. i used the 64bit version. And it worked after that.

    hope that helps.

  7. 01/21/2013


    Thanks I think I'll have to use another PC, the preloader device appears on device manager for a second only!! Any chance somone can install a fresh update, back it up then upload the backup here, I wonder would that work?

    • funkstardelux


      United Kingdom

      Does it not stay there with the yellow triangle notification symbol? I left mine connected to the phone then updated the driver and then it worked

  8. 01/21/2013


    Many thanks, all installed and working now, I just ignored the driver problem, setup the flashtool, pointed it at the unzipped directory with the firmware and the scatterfile, clicked update and connected the phone without battery as you said, all updated, weird though! Many thanks !

  9. 01/04/2014


    IMEI Restore faild!!! Instruction wrong?

    Root bevore???

  10. 12/23/2014


    Hello I allready searched the scatter file but i cant find here please help


    • funkstardelux


      United Kingdom

      you have to unzip the update file 0502L049A_E19_K168AB125MXXE4(K1_TURBO_B42)_EC31_IND_FULL in the ROM folder pref make a folder on your desktop to find it easier . then the scatter file is MT6592_Android_scatter.txt
