• Title: Lenovo Vibe X2-AP
  • Listed: 06/20/2015 7:39 pm
  • ROM Version: X2-AP ROW S223 & OTA S224, S228
  • You must be logged for ROM download.

Overall Rating : 57

74287 total views, 6 today

48 Total favorites


Lenovo Vibe X2-AP
Lenovo Vibe X2-AP - Image 1Lenovo Vibe X2-AP - Image 2Lenovo Vibe X2-AP - Image 3Lenovo Vibe X2-AP - Image 4

Author adMember Info


Please use latest version of WinRAR or 7Zip

Official ROM Lenovo X2-AP Version: X2-AP_ROW_S223_150528 (Lollipop 5.0)

Gapps include – No Rooted



1. Open flash_tool.exe from SP_Flash_Tool_v5.1512.00 folder
2. In Flashtool, select the MT6595_Android_scatter.txt from the target_bin folder. Wait file to be added into Flash Tool
3. Make sure “DA DL All with Checksum” is checked in Options -> Options -> Download   OR YOUR PHONE WILL FAIL TO BOOT!
4. Turn off your phone.
5. Select "Firmware Upgrade" or "Download only", but do not use "Format All + Download", because you will lose your IMEI and MAC
6. Press Download
7. Connect your phone into the computer via USB data cable.
- install driver from Drivers folder, if needed (you may have to disable Windows Driver Signature Enforcement)
- The process will start and a red progress bar will appear after, yellow, grey and green circles is displayed, the phone is successfully flashed
8. Disconnect the USB cable from the phone and turn it on. It will take few minutes for the phone to boot for first time




New TWRP recovery files added.

ADB and MTP on recovery mod.


Ota files modified to install over TWRP

S224 OTA file added (S223 to S224)

S228 OTA file added (S224 to S228)

Because ota files, created as differantial update, you need to allready installed previouse version

※Please make a backup of your device before installing or updating ROM

234 Responses to“Lenovo Vibe X2-AP”

  1. 09/11/2014


    HELP !!!!!!!!

    Hi guys,

    Today I decided to go back to 1443 CU original ROM. So I flashed it with "format + all" and restore nvram with TWRP, but only IMEI slot sim card 1 was restored. IMEI slot sim card 2 continued as unknown. Please, someone help me to solve it!!!

    Thank you!


    • 01/13/2015


      try to look for on internet software program imei.exe, you can make a new file with IMEI sim card 2… and copy to folder..

      IMEI to….. /data/nvram/md/NVRAM/NVD_IMEI/MP0B_001



    • 06/06/2013


      Try to use how to restore imei with AT command on the net, google will provide the solution.
       I have used it with mobile uncle tools…

  2. 09/02/2015


    thank you so much for this rom.
     does the two sim works ? have anyone tried this one?

  3. 09/02/2015


    is anyone has a vibe x2 usb drivers, my phine is stuck in recovery mode and the pc cant detect the unit.. help pls.

  4. 09/11/2014


    Thank you topstile.zgz

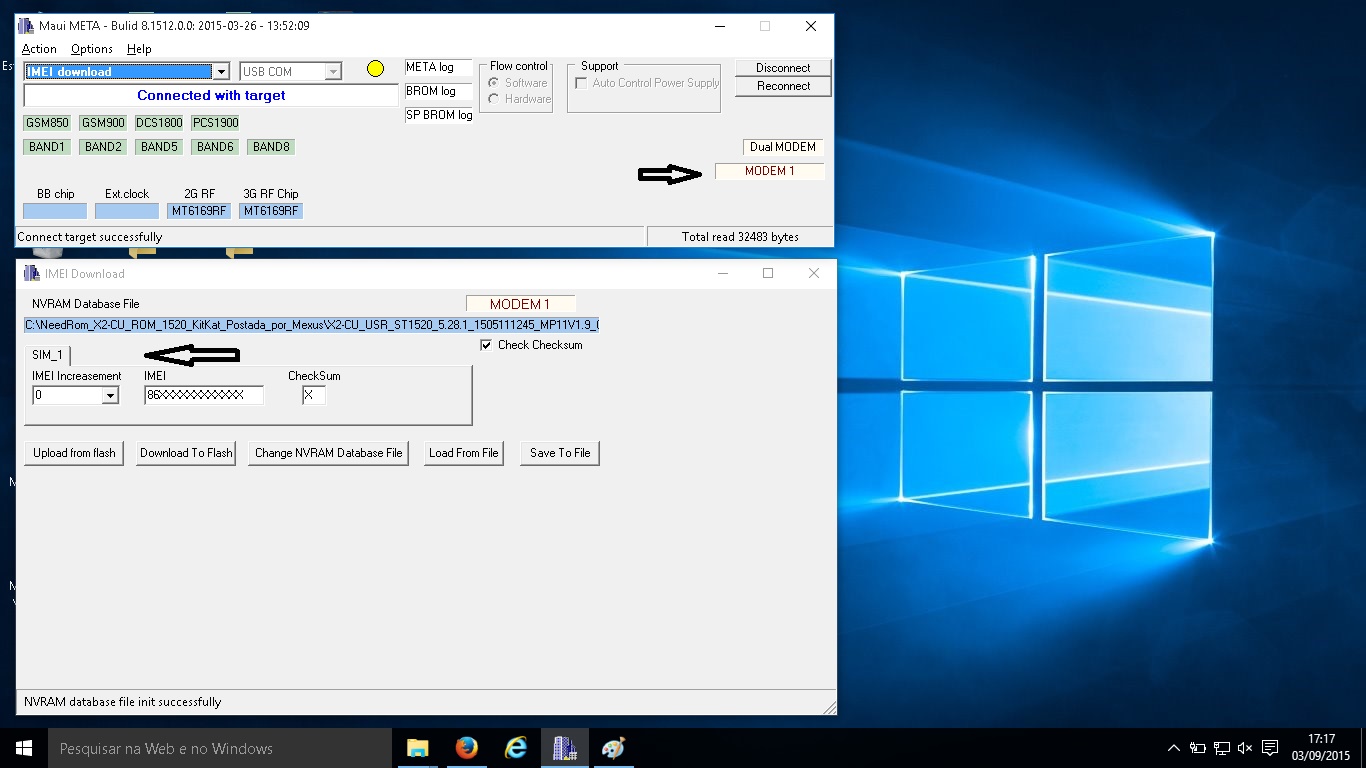

    But it didn't work. I was already treid: restore from TWRP; root and replace nvram folder and also IMEI.exe. None of these worked. Now I'm trying Meta 3g. But only the SIM 1 tab is shown. I do not understand what that means! It also shows "Dual Modem" and "MODEM 1" (it seems that MODEM 1 is referring to the phone). I'm lost without knowing what to do! There seems to be some problem that I do not see! Is there anything I can do?


    • 06/06/2013


      Try to use how to restore imei with AT command on the net, google will provide the solution.
       I have used it with mobile uncle tools…

  5. 06/06/2013


    Please note this…

    AP Rom works perfectly in CU version… Just follow instructions. To solve SIMs problems, just copy modem file from CU version, and when you have flashed the AP version, root the phone and then overwrite the file in /etc/firmware with permissions like in this photo:




    You can also add execute permissions too…

    Everything will work fine, granted…

    Sometimes there could be a failure will starting the phone each time you turn it off, it has a bootloop while unblocking SIM card, to solve this just turn the phone in airplane mode, then when you start it up and you set the pin code, you wait a few seconds a disable the airplane mode, and everything will work fine (if you cannot connect to data connection try this process again)

    This is the price we have to pay for another model version… if not, you can use CU version


    By tthe other hand, I dont know how to solve flash tool problems, error 4001, which means it doesnt recognize it… Anyone have a solution for it?


    • 09/11/2014


      This does not completely true. I have CU version with two sim cards/IMEI (the packing box shows only one IMEI). I when I installed the ROM (I did this in several ways, including replacing modems), at all times the Internet and bluetooth have not worked. Simply the android does not recognize it! So I was forced to return to kitkat and had all the problems that I have said here.

  6. 09/03/2015


    hi !!!! i am trying to run TWRP recovery.i follwed the steps..but for some reason my phone goes into bootloop after i flash the twrp CU recovery…sp flash tool says download ok….ive also checked da dl checksum.it doesnt go into recovery after flashing..just bootloops.i pressed the power kays + volume keys,released the power key when phone vibrates but then it just goes into bootloop.da fuq.!!

    if i let it boot normally,then reboot into recovery it goes into recovery.

  7. 09/03/2015


    DO i need to root for TWRP recovery ?


    • 06/06/2013


      No you don't, in fact, once you get into twrp recovery, when you gonna exit the app, it will ask you to root it

  8. 04/14/2015


    how can i root my smartphone when i have this rom ? anyone knows?

    • 06/06/2013


      Please, check the answers in the post… all info is there… it seems you are lazy to look for it…

      When you exit twrp recovery it will give you an option to root it

  9. 03/19/2014


    Hello, can someone please tell me how i can update to X2-AP S224 with Ota files please. Everytime i try to download from device, after rebooting to install, it opens TWRP menu and than nothing. I reboot system but update is fail.


  10. 06/27/2014



    it's actually a pain in the a. the way the update is constructed. what i did to manage it, is to reflash temporarily lenovo recovery to execute it. check also the russian site 4pda, one guy has ported the update to function directly in TWRP. finally, the update only works if you have not made modifications to your phone, such as disabling/removing "standard" apps, standard launcher etc. my first attempt left my phone in a bootloop, i ended up reflashing S223 first, apply the update, and then recustomizing afterwards. good luck!
